OKATECH expanded metal

Exclusive daylight system: Insulating glass with expanded metal insert

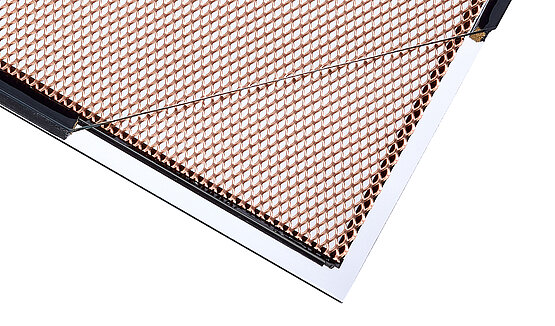

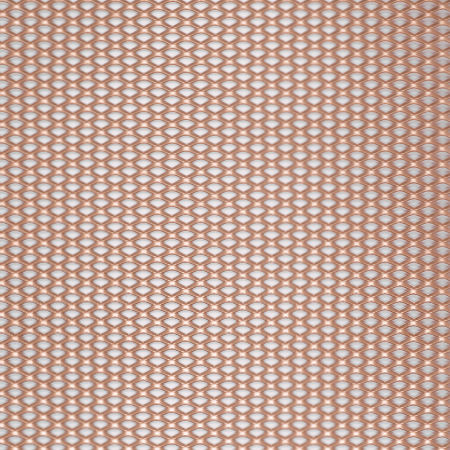

Glass facades with OKATECH expanded metal inserts always set visual accents. The copper and aluminum inserts are not only attractive elements of design but also function as direction-selective daylight systems and ensure effective sun and glare-protection.

During the day, they give the building shell a special glow and the façade has a metallic shimmer in the sunlight. At night, when artificial light is used, they allow deep views into the interior.
In addition to façades and parapets, OKATECH expanded metal is also suited for sophisticated interior design applications.

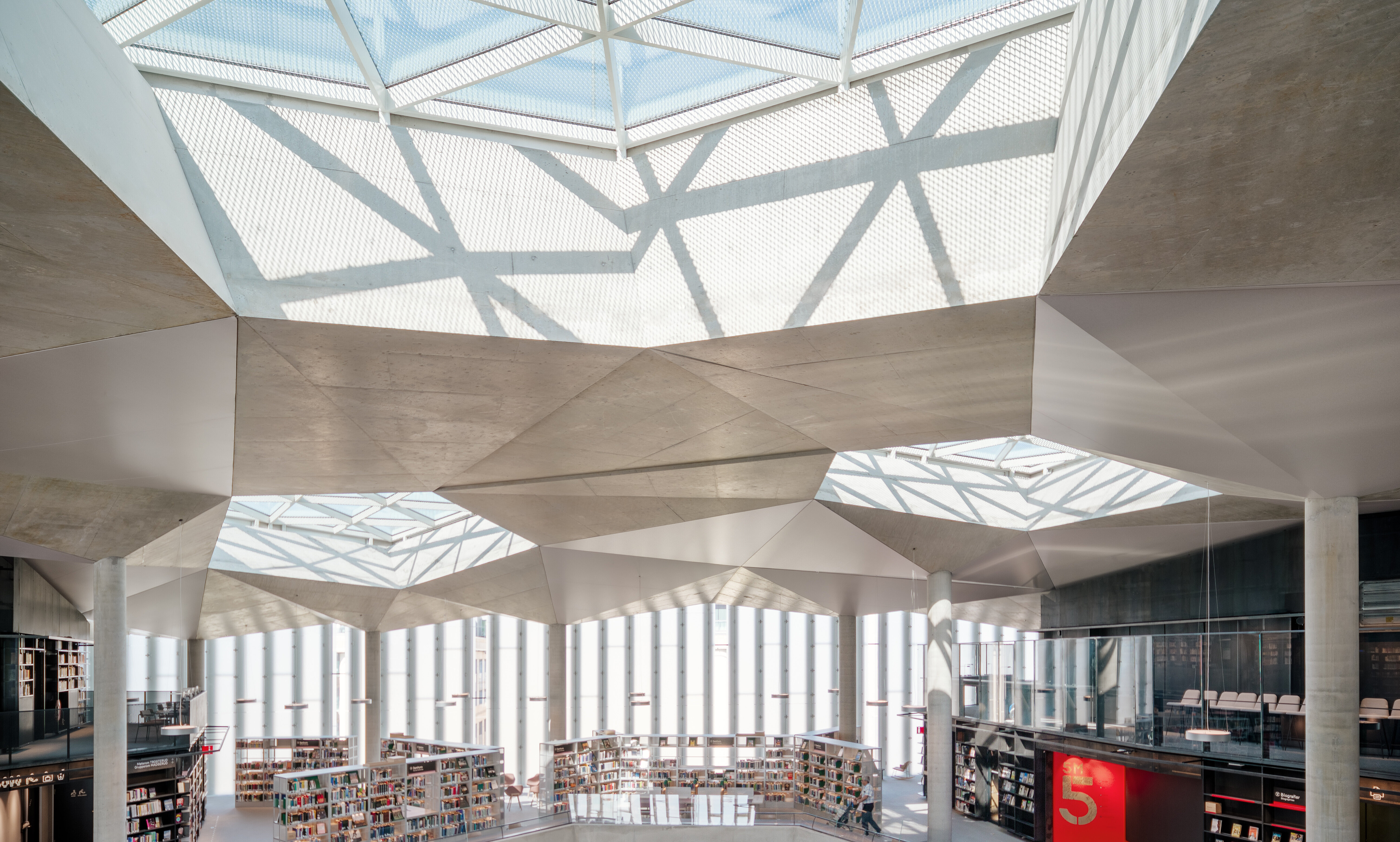

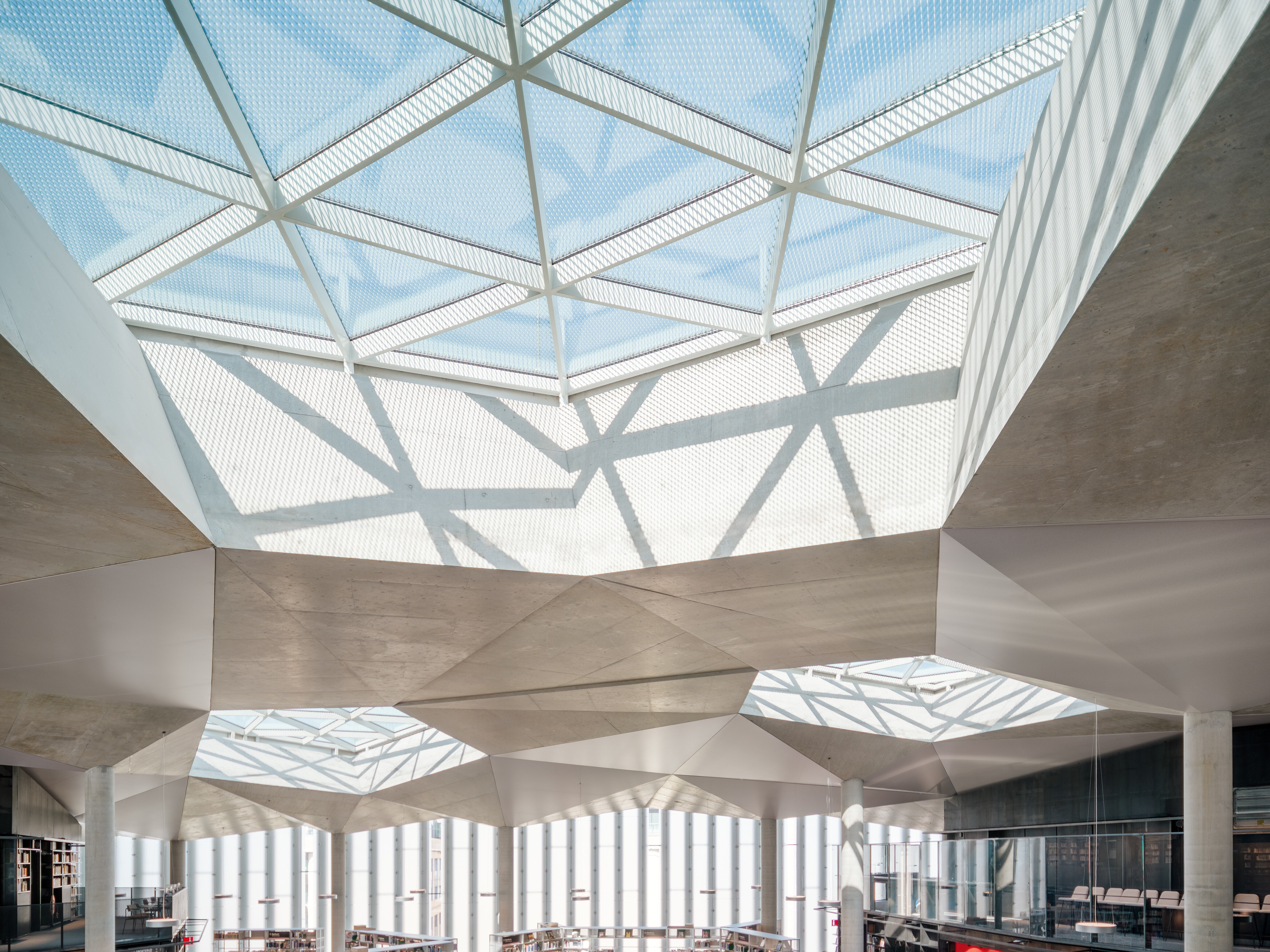

©Einar Aslaksen — Deichman Bjørvika Library - OKATECH expanded metal

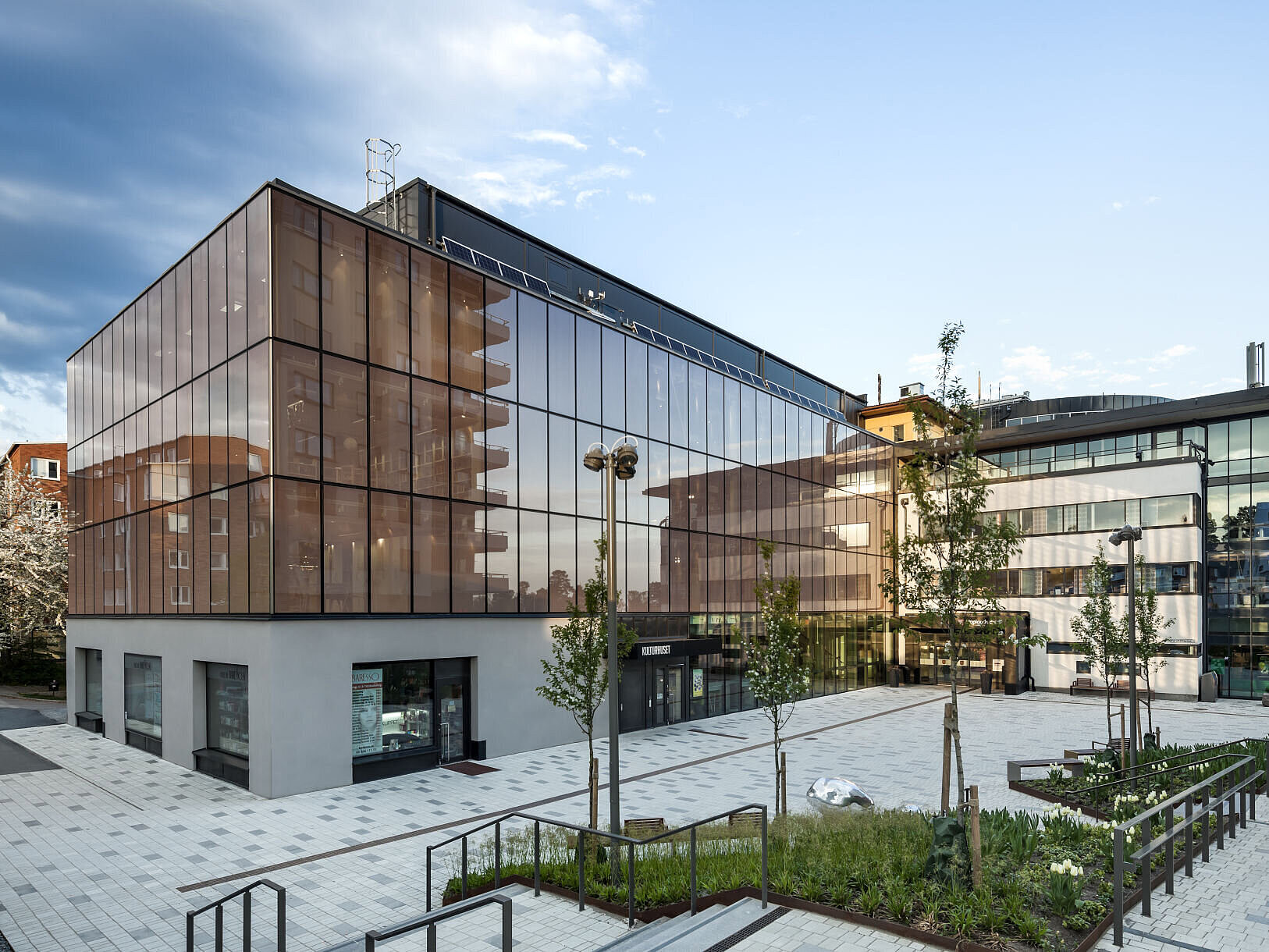

© Tim Meier Photography — Kulturhaus - OKATECH expanded copper

© Kuba & Pilař architekti — Office Building Biskupská - OKATECH expanded aluminium

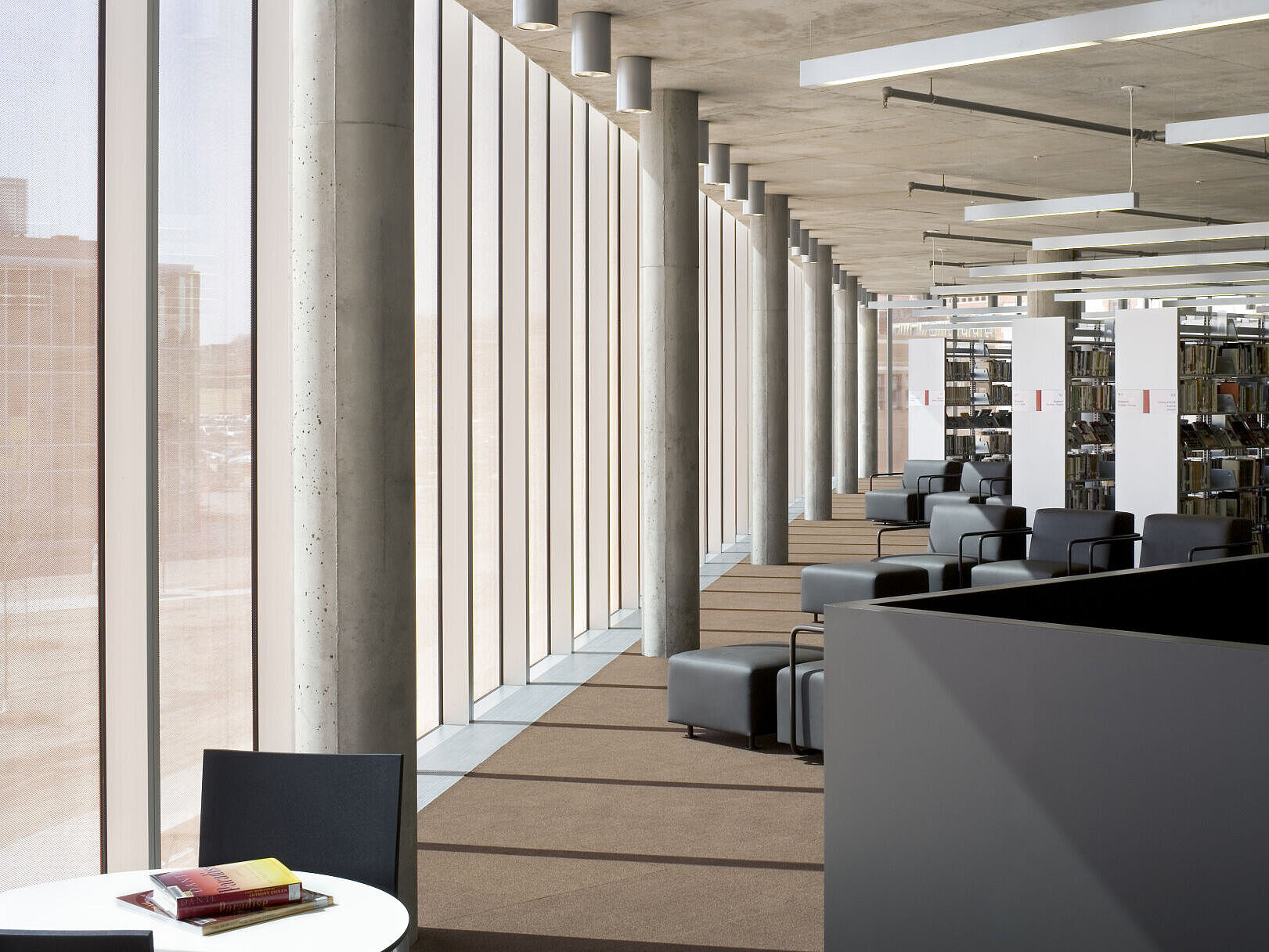

© Farshid Assassi — Public Library - OKATECH expanded copper

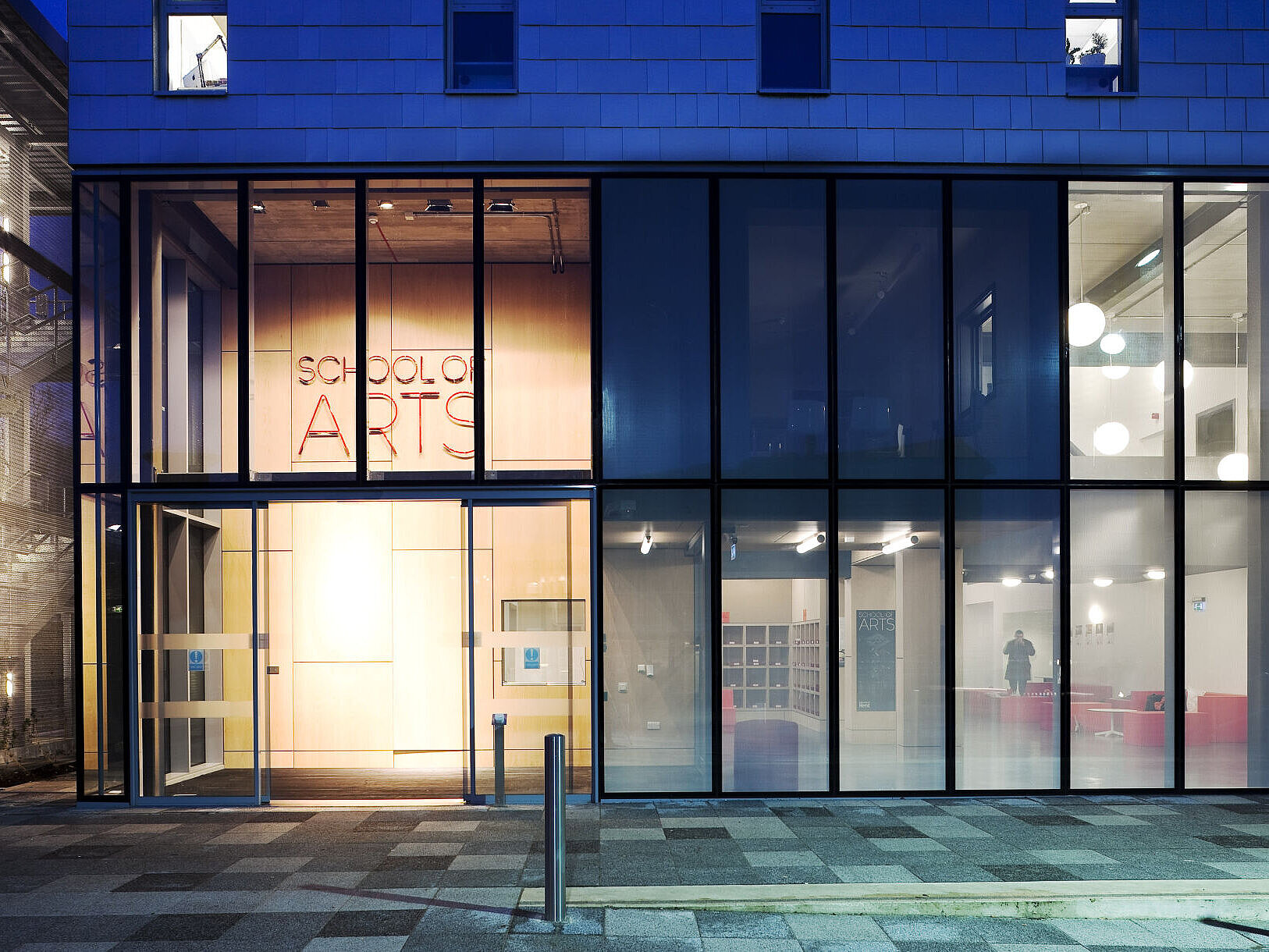

© Daniel Clements Photography — University of Kent - OKATECH expanded aluminium

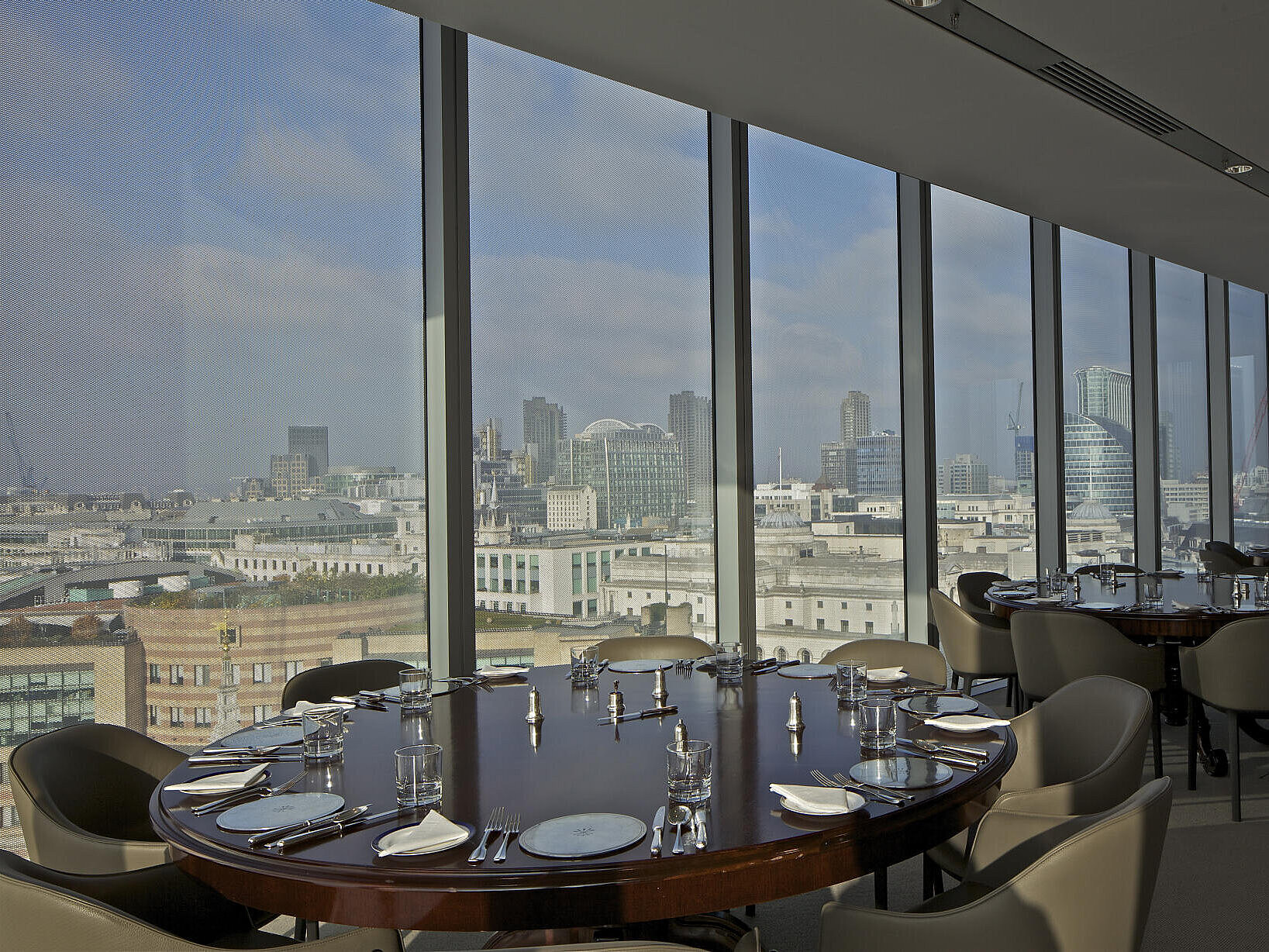

© Philippe Ruault — N M Rothschild & Sons Headquarters - OKATECH expanded aluminium

Variety of Design and Attractive Aesthetics

The gleaming metal inlays give the facades a unique character and a special brilliance
Different properties oft he building shell

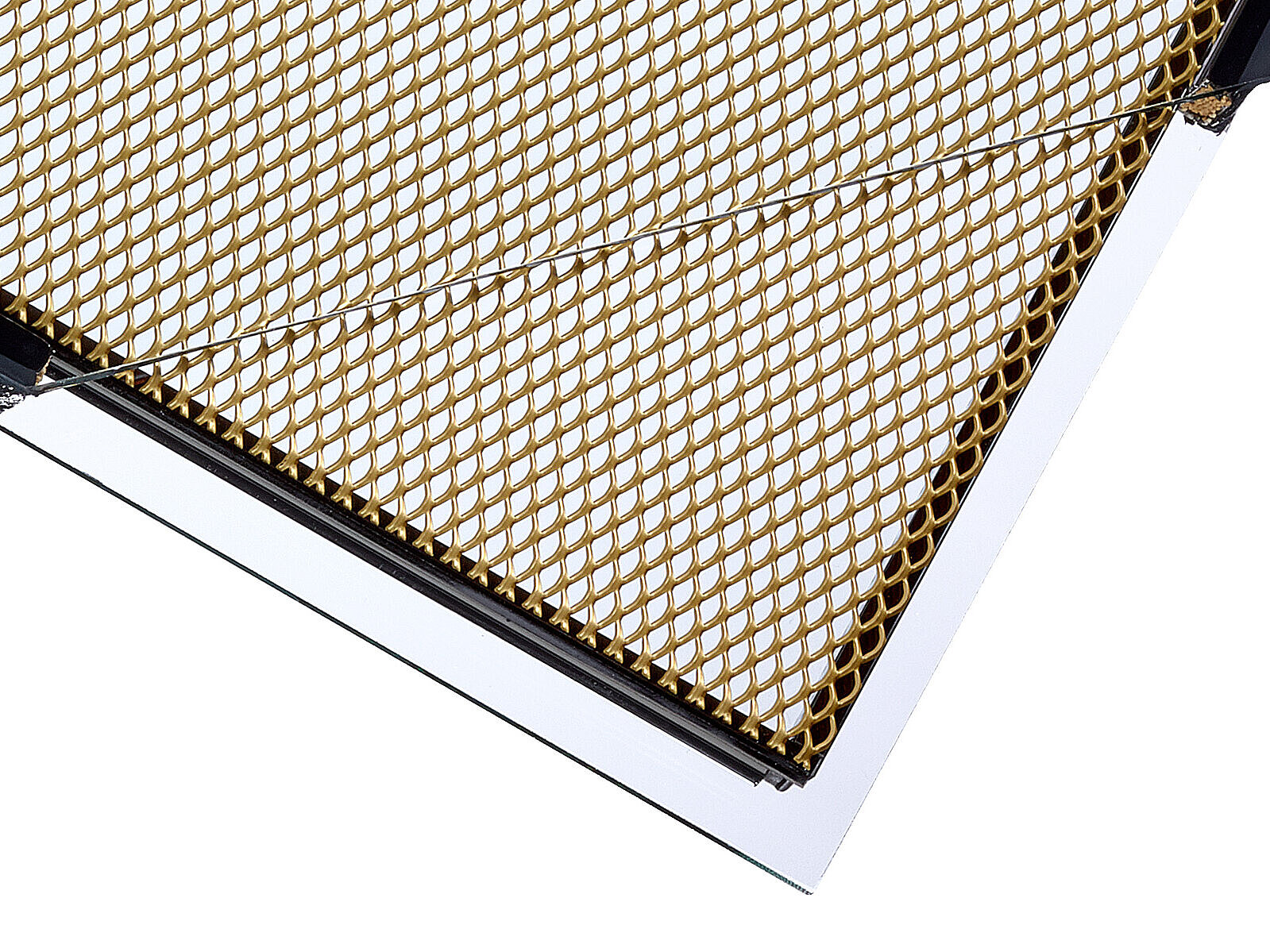

Combination of various metals and coatings
Variable geometry and dimension
Sophisticated design solutions
Embedding in a Multifunctional Module (MFM) is possible
The energy balance of the building can be significantly improved by combining OKALUX@ HPI

Functionality

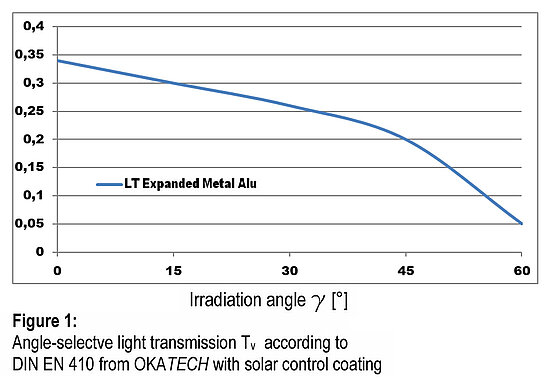

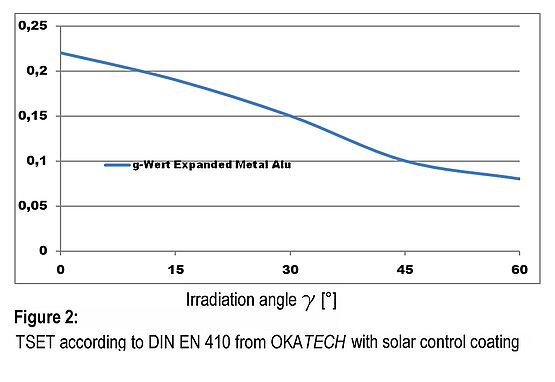

Angle-selective sun and glare protection
Reduced solar entry into the building
Visibility as bird protection function
Fire protection according to requirements

Sustainability

Fully recyclable
Long-lasting, maintanance-free and easy to clean

User Comfort

Successful combination of privacy and partial view
Comfortable interior atmosphere through evenly diffused daylight

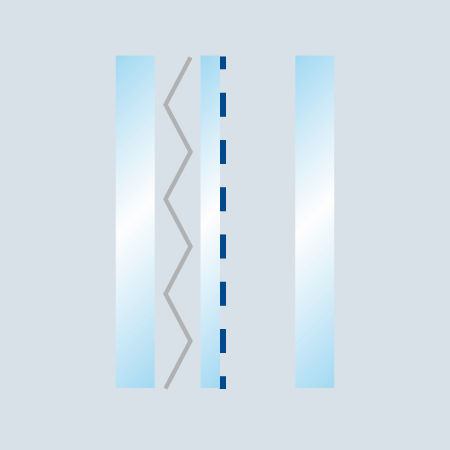

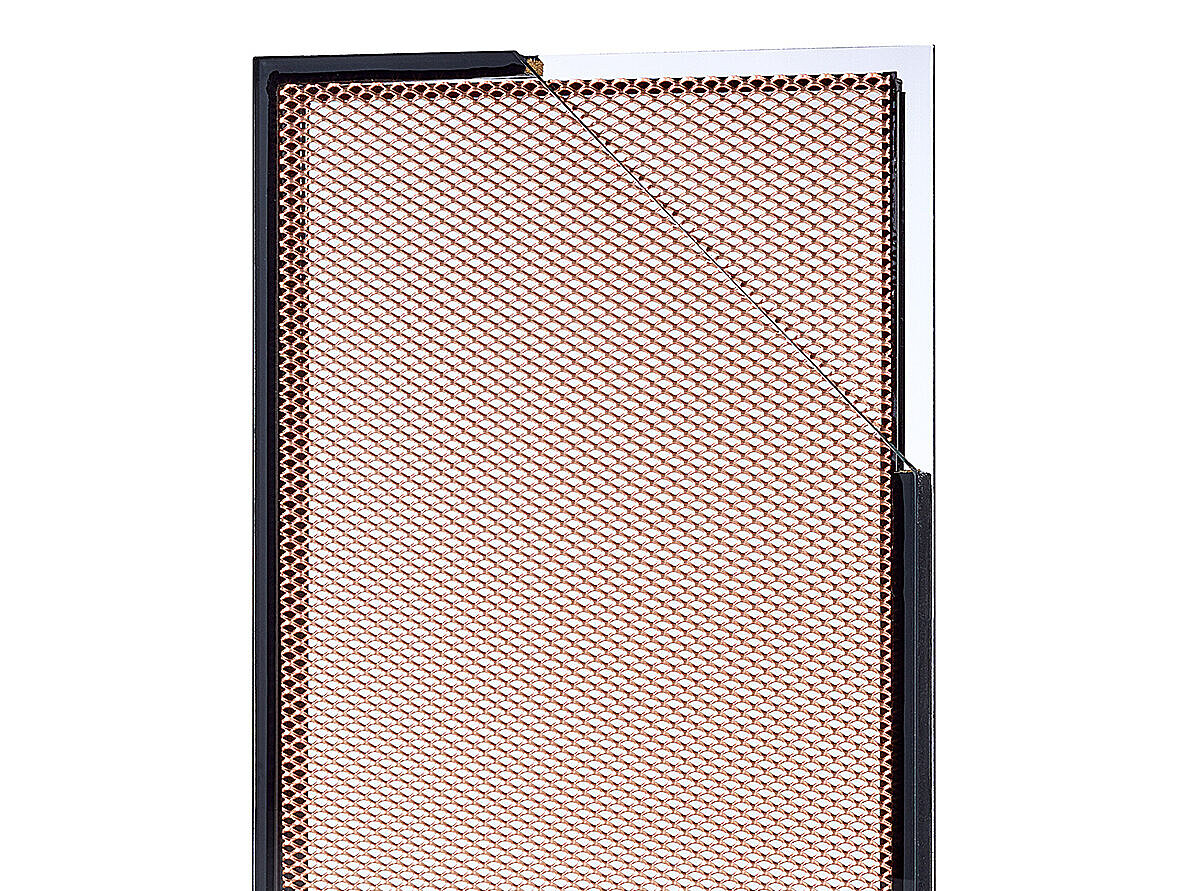

OKATECH Expanded Metal – double glazing build-up – vertical glazing — Double glazing build-up – vertical glazing

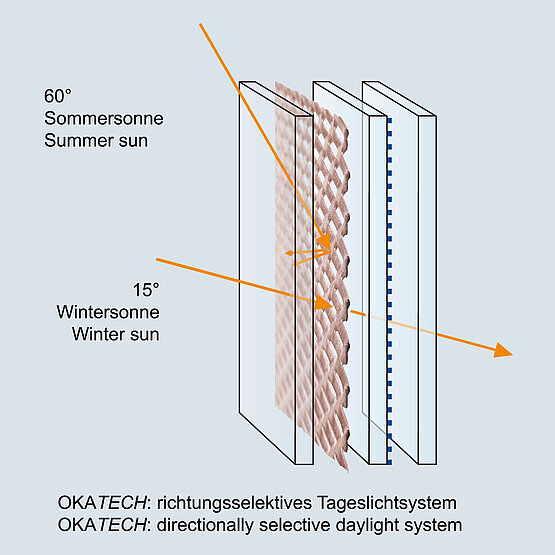

OKATECH Expanded Metal - principle of function — Build-up and principle of function

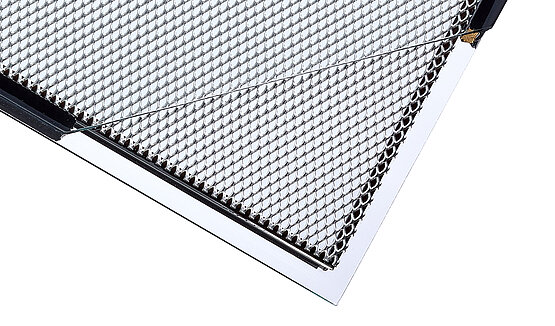

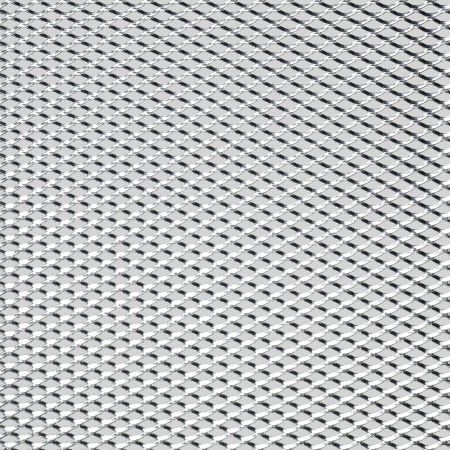

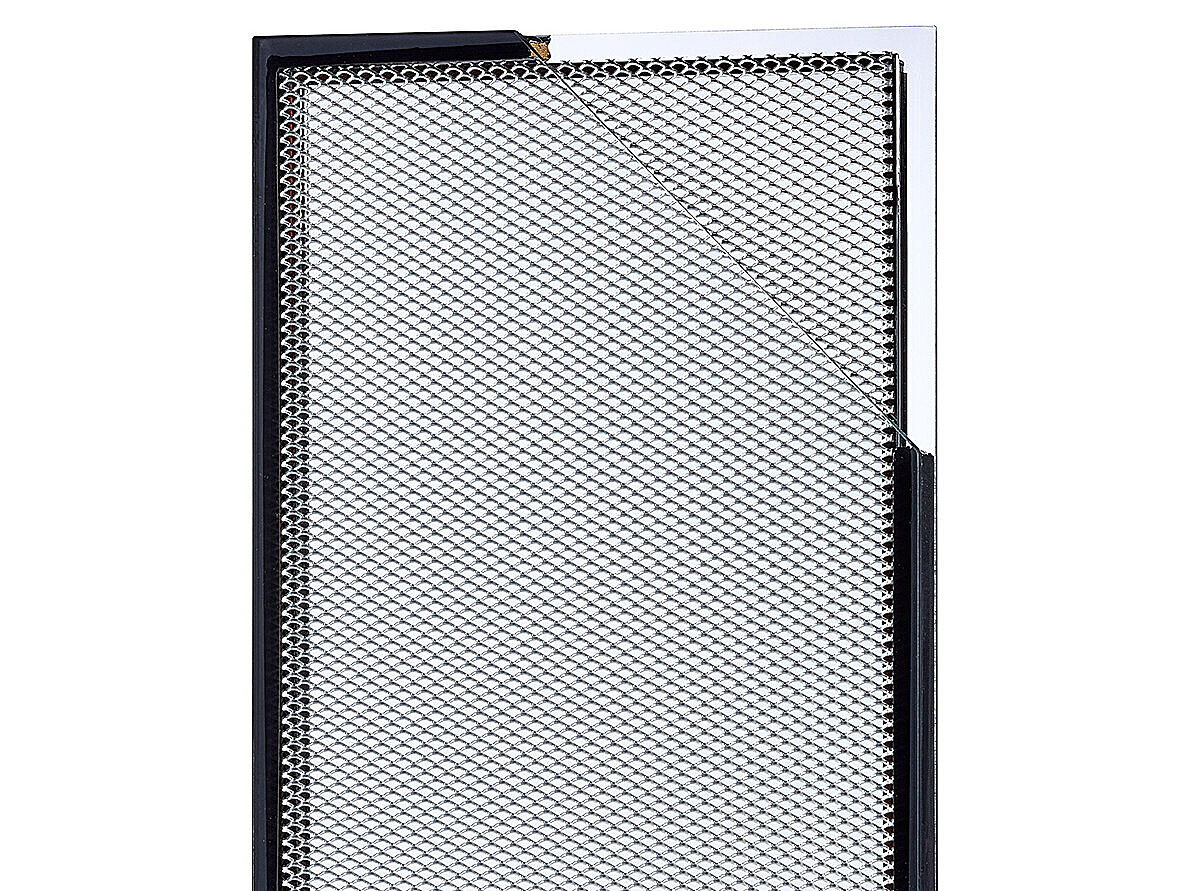

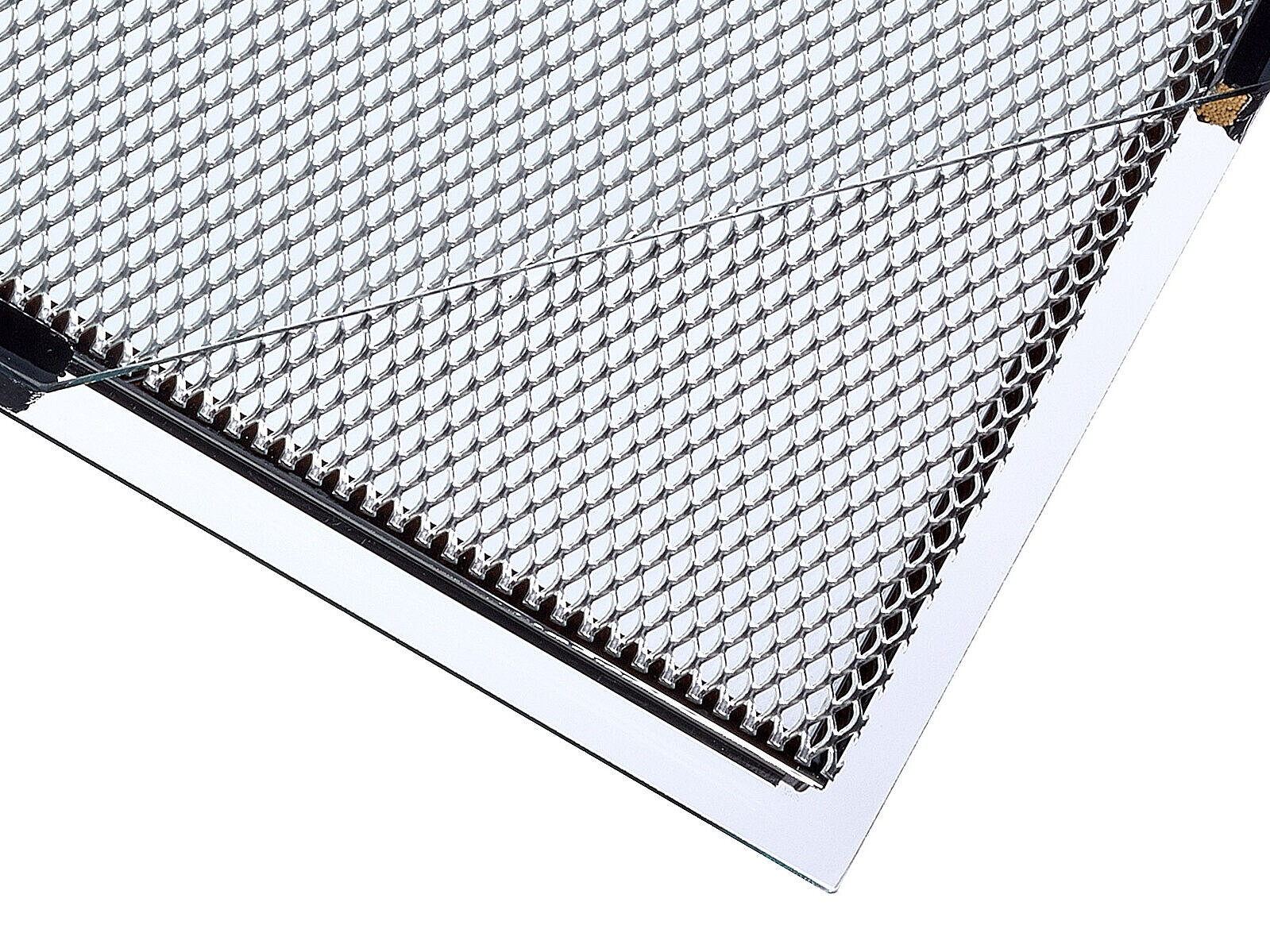

OKATECH Expanded Metal - Aluminium — Aluminium inlay

Maximum dimensions: 1,250 mm x 3,500 mm, larger sizes available upon request
Maximum dimensions: 7 m²

OKATECH Expanded Metal		Functional coating	U_g-value [W/(m²K)]			TSET	Light Transmission
Double Glazing		Type	Krypton	Argon	Air	(%) min.¹ - max.²	(%) min.¹ - max.²

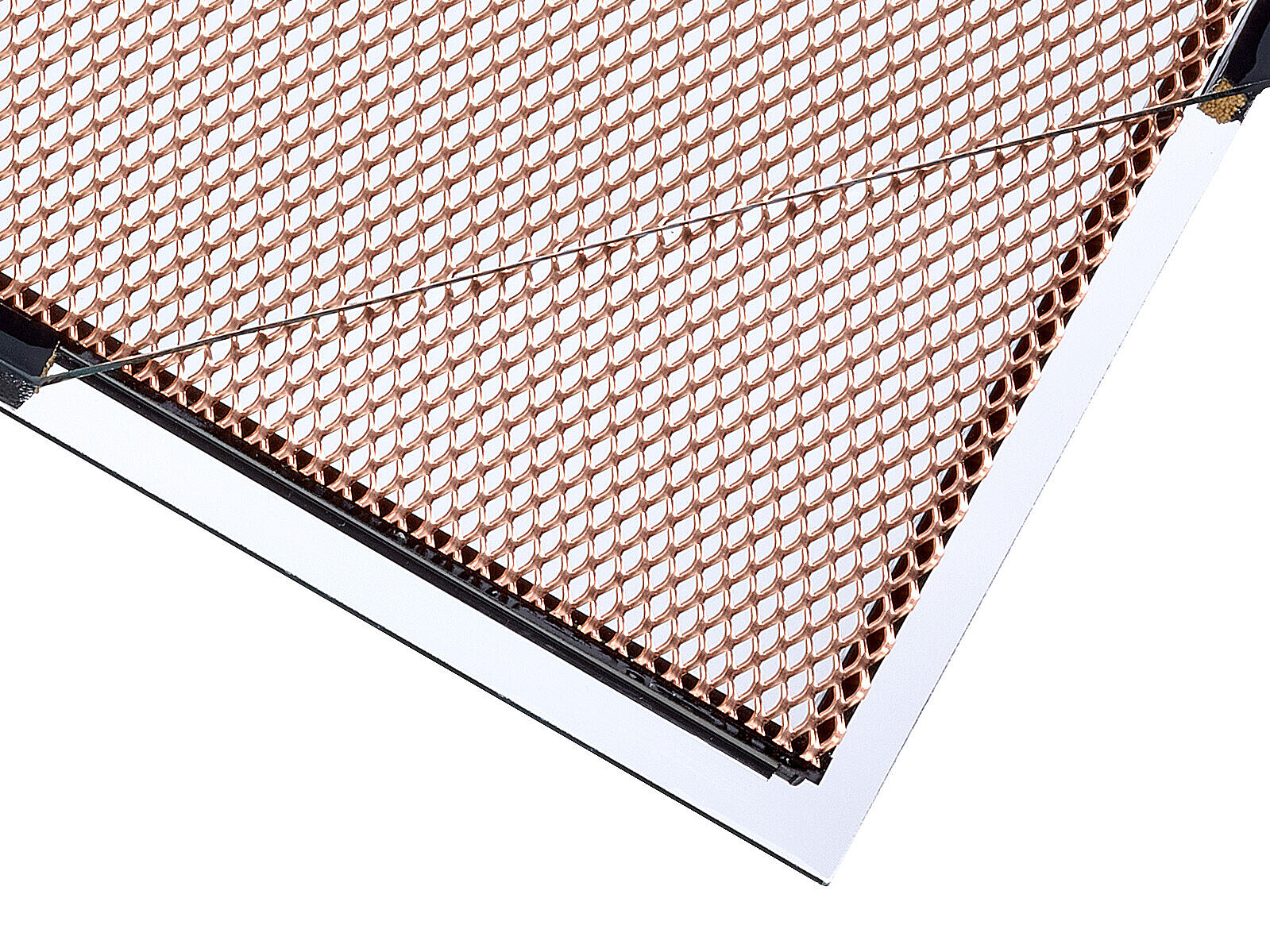

	Copper	low-e	1,0	1,2	1,5	15 - 36	9 - 45
	Copper	solar	0,9	1,1	1,4	13 - 24	8 - 39
	Aluminium	low-e	1,0	1,2	1,5	9 - 31	8 - 39
	Aluminium	solar	0,9	1,1	1,4	8 - 21	6 - 34
