Fire resistant glass

Where fire, smoke or heat radiation are concerned, our FIRESWISS fire-resistant glass combines reliable protection in the event of fire with a wide range of design options.

Go to

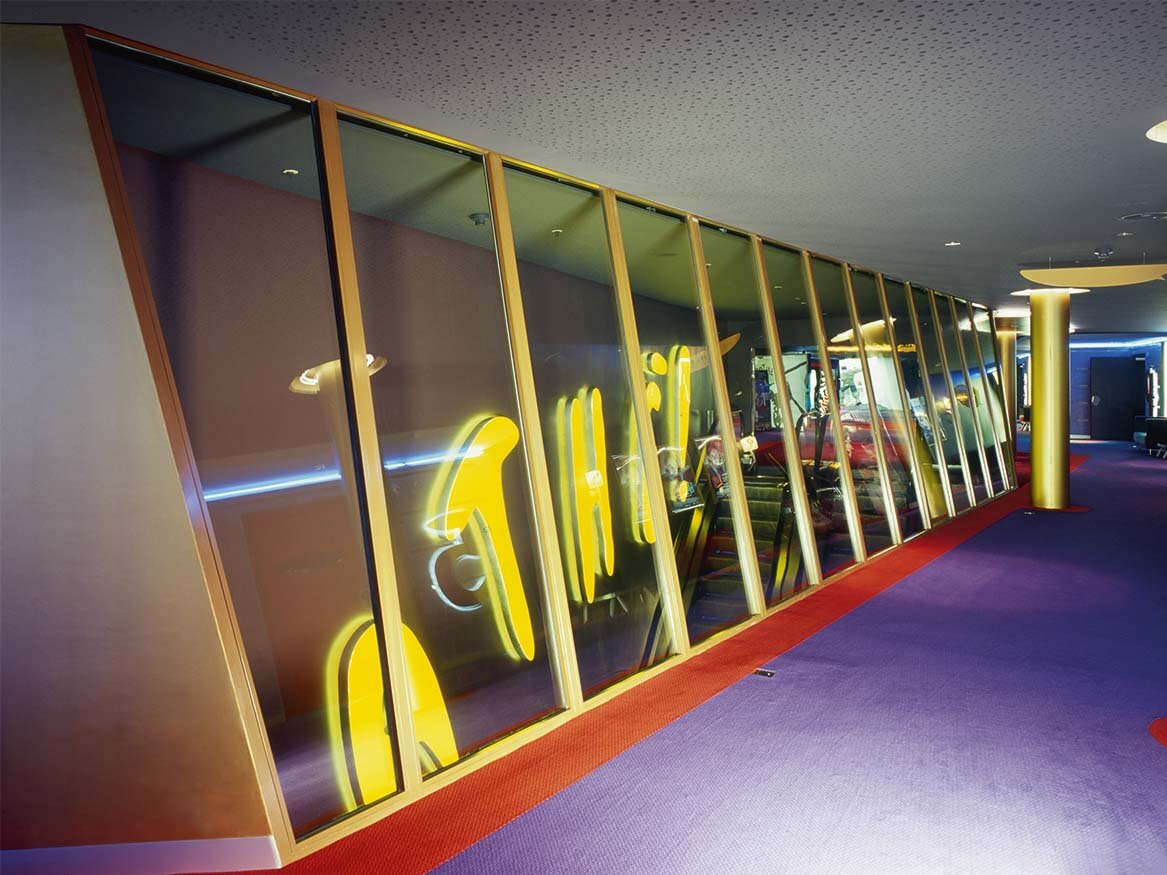

The fire-resistant glass with the highly efficient heat shield

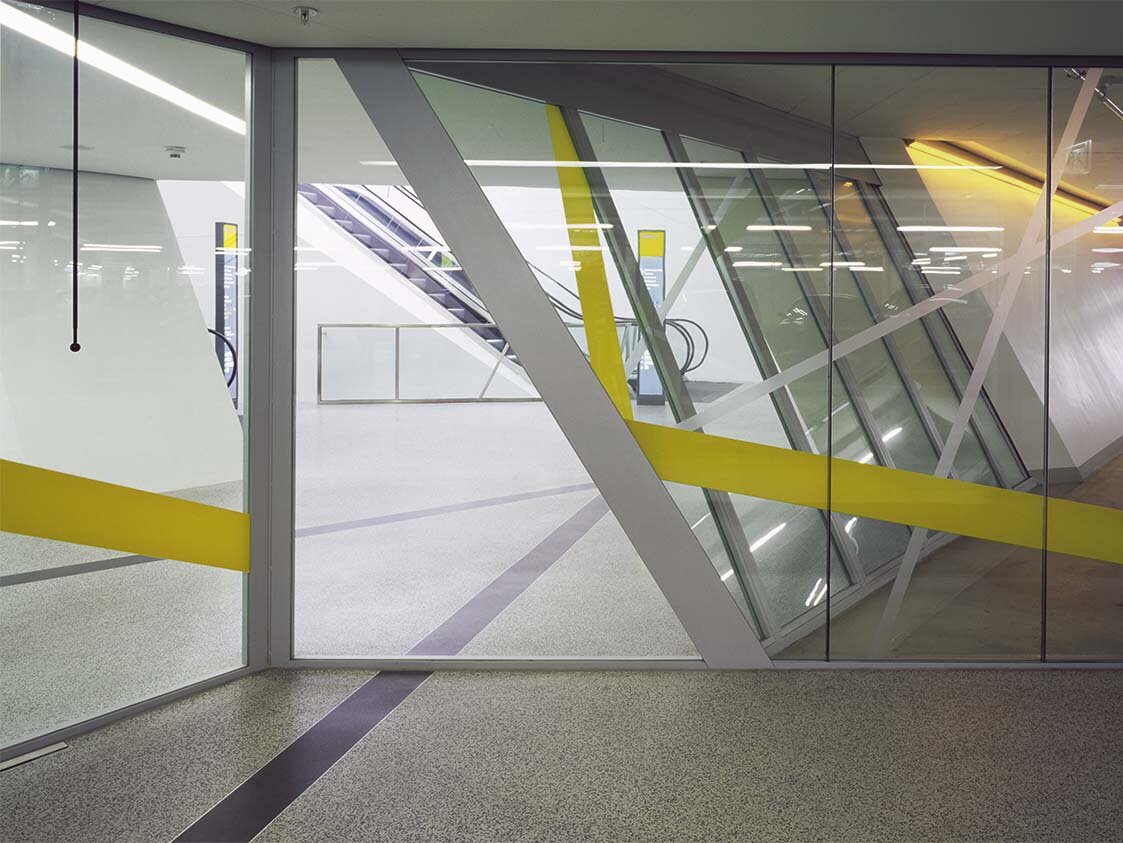

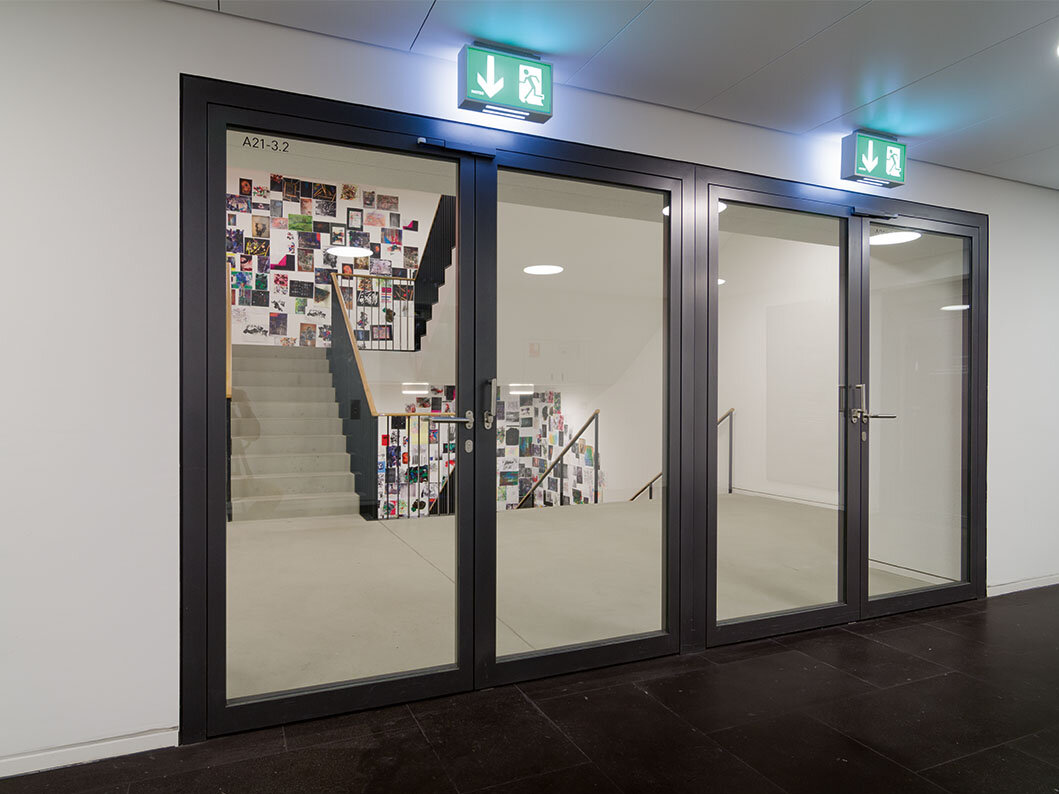

The FIRESWISS FOAM fire-resistant glass not only protects from fire and smoke, but also offers effective protection from dangerous heat radiation for non-structural components.

In the event of a fire, the laminated glass with innovative thermal transformation (TTS) layers completely absorbs radiant heat, thus achieving fire protection class EI. In the further course of the process, the layers form a firm, tough foam sheet to which the fragments of the fire-side float plate adhere.

Aesthetics Maximum safety combined with beautiful look; can be designed transparently or in different colors

Function Maximum reduction of heat radiation for non-load-bearing components; escape routes remain passable in the event of a fire; class EI fire-resistant glass

Safety Additional protection from mechanical attacks and impedes injury in the event of breakage

Technical specifications

This data represents typical values. Panes with classification EI 90 / EI 120 on request. Pane size: 2125 mm x 3100 mm. Cutting by the processor. Details of tested glazing are available on request.
Glass type	Thickness in mm	Classification acc. to EN 13501-2	Weight in kg/m²	Integrated UV protection	Airborne soundinsulation (dB)	Impact resistance	Light transmittance (%)
FIRESWISS FOAM 15-11	11	EI 20	25	no	37	2B2	87
FIRESWISS FOAM 15-15	15	EI 20	37	yes	38	1B1	86
FIRESWISS FOAM 30-15	15	EI 30	35	no	40	1B1	85
FIRESWISS FOAM 30-19	19	EI 30	43	yes	40	1B1	84
FIRESWISS FOAM 45-19	19	EI 45	44	no	41	1B1	84
FIRESWISS FOAM 45-23	23	EI 45	52	yes	42	1B1	83
FIRESWISS FOAM 60-23	23	EI 60	53	no	43	1B1	82
FIRESWISS FOAM 60-27	27	EI 60	61	yes	44	1B1	81

Downloads

Product information (7 MB, pdf)

Gallery

Video

The fire-resistant glass with reliable heat protection

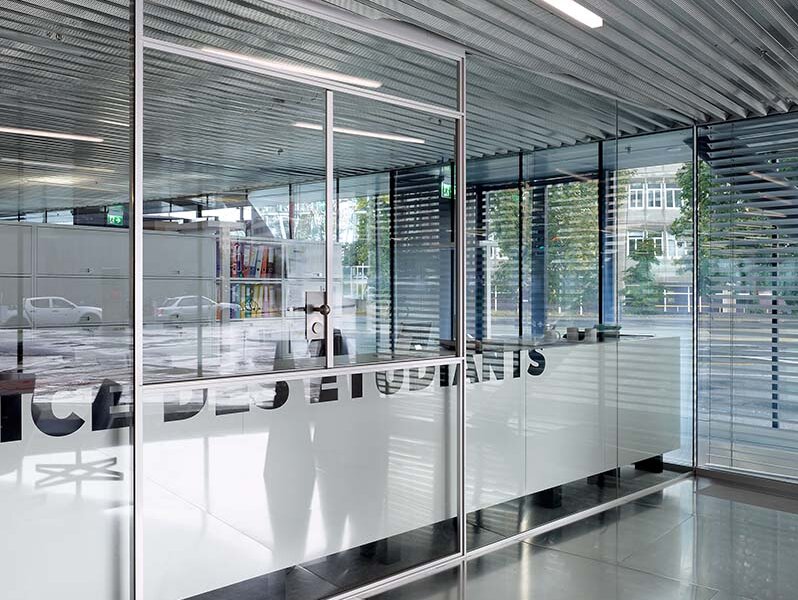

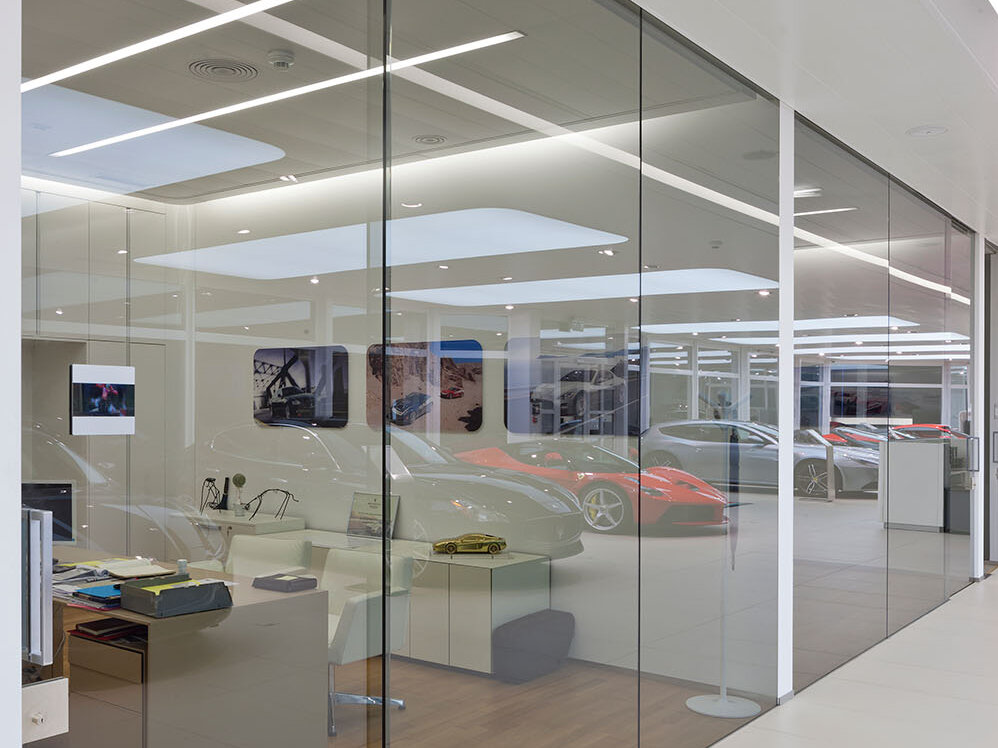

Specially designed for fire protection, FIRESWISS COOL laminated safety glass offers effective protection of the room from fire and smoke while reducing radiated heat on the side facing away from the fire. This class EW protective function permits the safe passage of escape routes in the event of a fire.

The fire-resistant glass is subject to constant checks by independent inspection authorities and guarantees its unrestricted use worldwide.

Aesthetics Exceptional transparency; also available in color variants

Function Reduction of radiated heat in the event of a fire; escape routes remain passable; EW class fire-resistant glass

Safety Additional protection against mechanical attacks and injury-impeding in the event of breakage

Technical specifications

This data represents typical values. Pane size: 2125 mm x 3100 mm. Cutting by the processor. Details of tested glazing are available on request.
Glass type	Thickness in mm	Classification acc. to EN 13501-2	Weight in kg/m²	Integrated UV protection	Airborne soundinsulation (dB)	Impact resistance	Light transmittance (%)
FIRESWISS COOL 30-7	7	EW 30	16	no	35	3B3	89
FIRESWISS COOL 30-7 2B2	9	EW 30	22	no	35	2B2	89
FIRESWISS COOL 30-11L	11	EW 30	24	yes	36	1B1	88
FIRESWISS COOL 30-11	11	EW 30	25	no	37	2B2	87
FIRESWISS COOL 30-15	15	EW 30	34	yes	38	1B1	87
FIRESWISS COOL 60-15	15	EW 60	34	no	38	1B1	85
FIRESWISS COOL 60-19	19	EW 60	42	yes	39	1B1	84

Downloads

Product information (7 MB, pdf)

Gallery

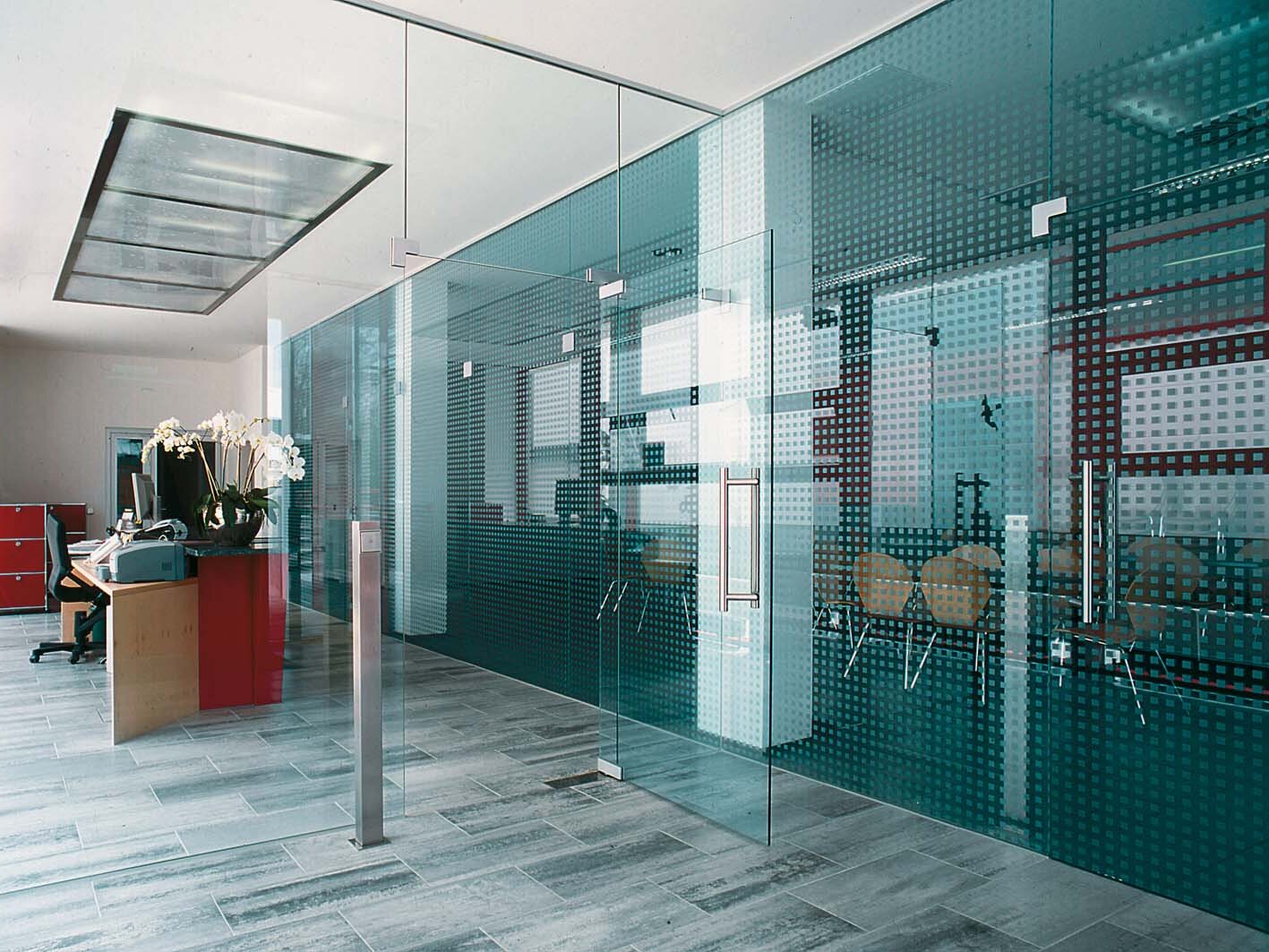

The fire-resistant glass that separates the room safely

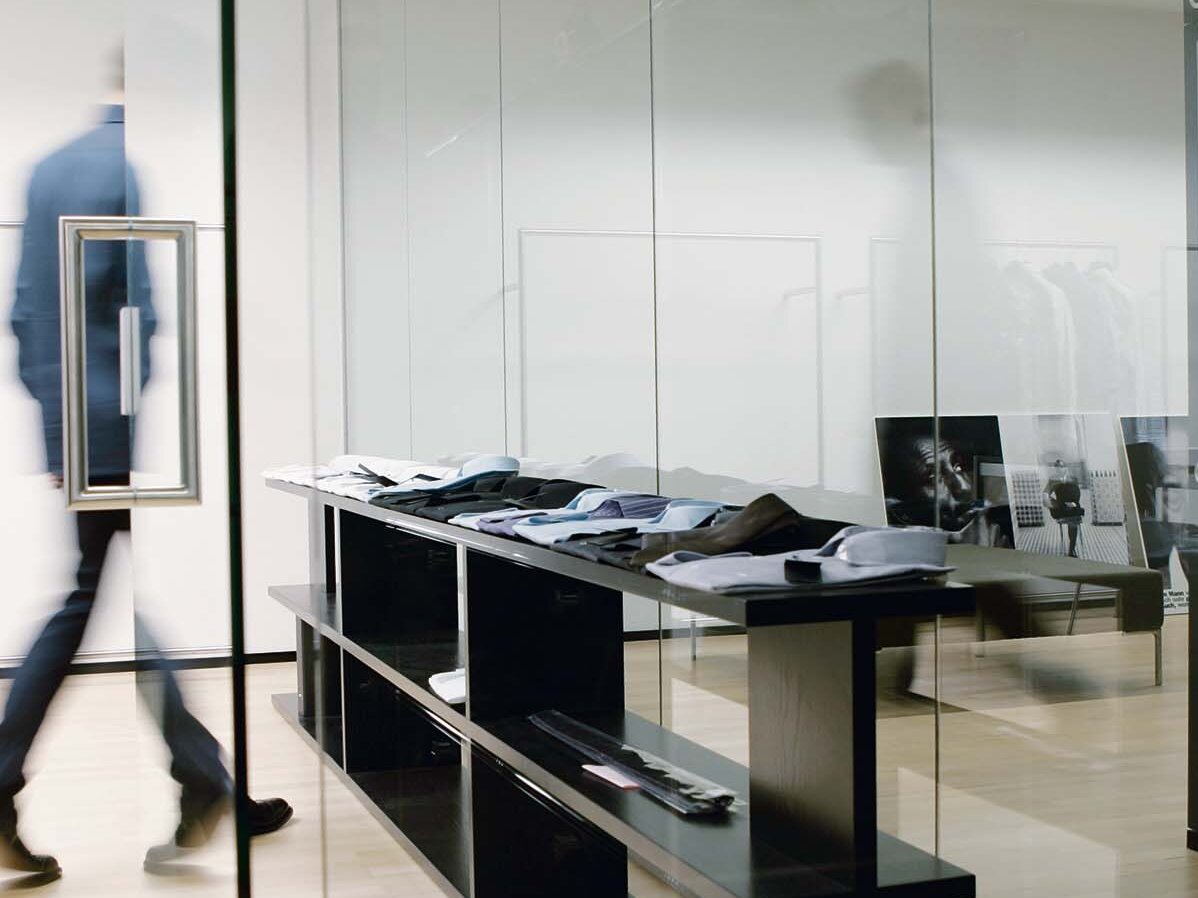

The thermally toughened FIRESWISS E single-pane safety glass combines reliable fire protection properties with maximum transparency.

As a class E fire-resistant glass, it offers increased thermal shock resistance and provides an effective barrier against smoke and flames over a certain period of time. This prevents the blaze from spreading to the side facing away from the fire.

Aesthetics Transparent or versatile design by printing

Function Protects rooms from smoke and flames for a certain period of time; class E fire-resistant glass

Safety Mechanical properties as well as flexural strength and fracture structure tested according to applicable standards
