OKALUX+

OKALUX+

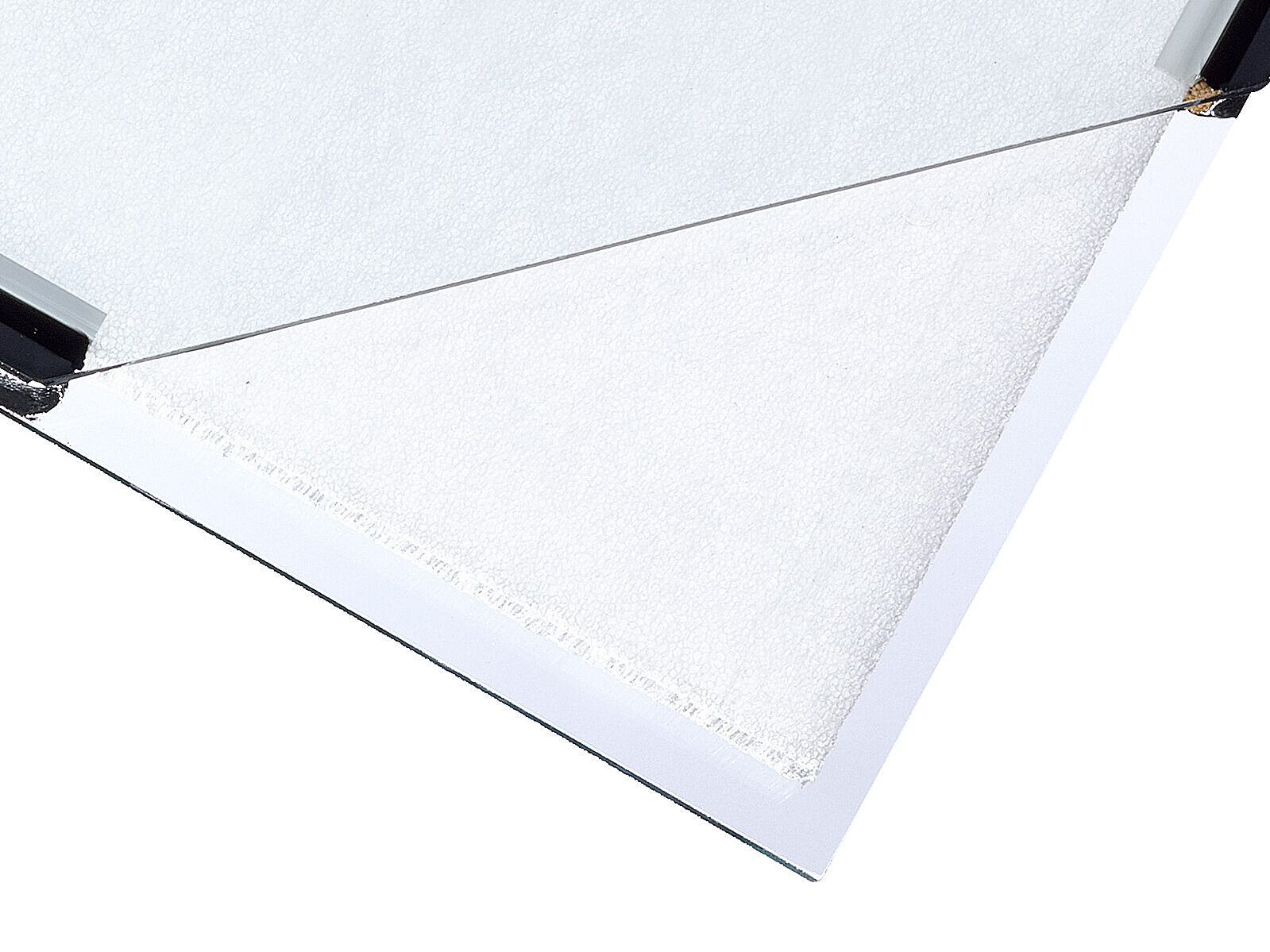

Light-diffusing double-glazing insulating glass with optimized Ug-value

OKALUX+ light-diffusing insulating glass offers numerous advantages: The capillary slab in the cavity allows for an even and shadow-free illumination with daylight deep into the room. The sun and glare-protection are very good, the heat insulation excellent and the transmission values individually adjustable to the requirements.

In comparison to the product variant OKALUX, OKALUX+ achieves an optimized Ug-value even in narrow pane build-ups thanks to a functional layer in combination with a gas-filled cavity.

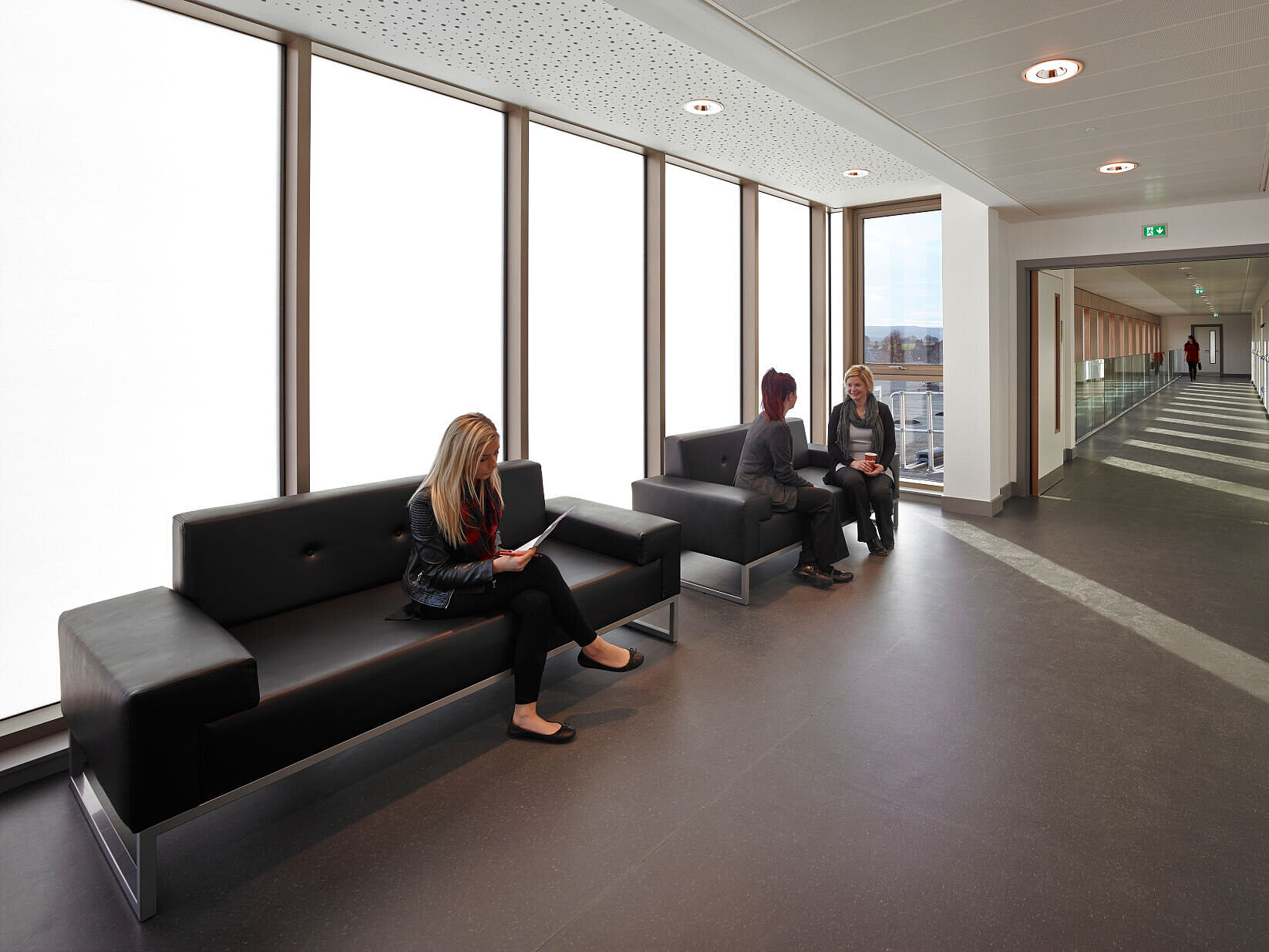

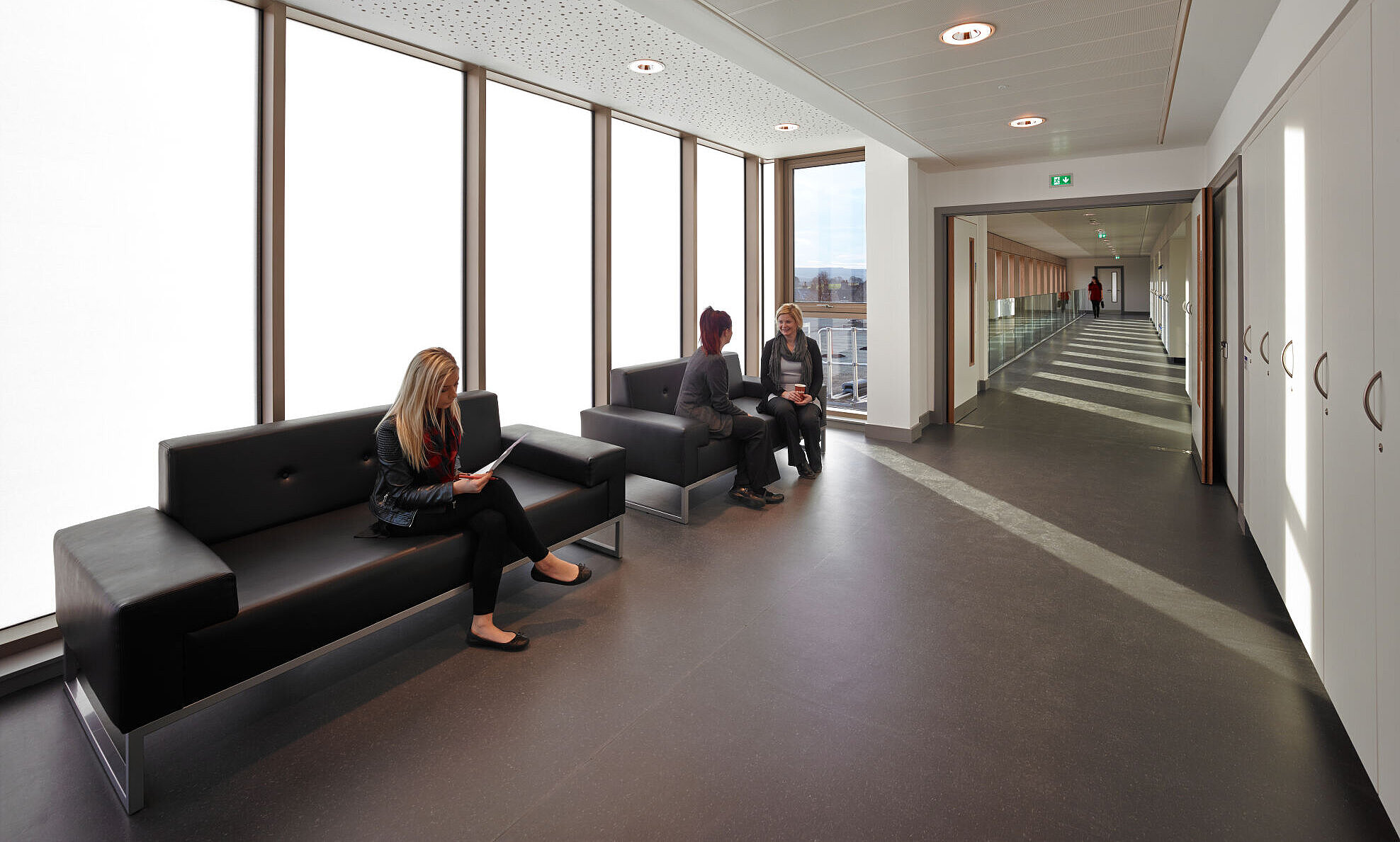

© Andrew Lee Photographer — Alexander Graham Bell Centre for Digital Health - Moray College UHI - OKALUX+

© Eric Staudenmaier Photography — Oxnard College Library - Learning Resource Center - OKALUX+

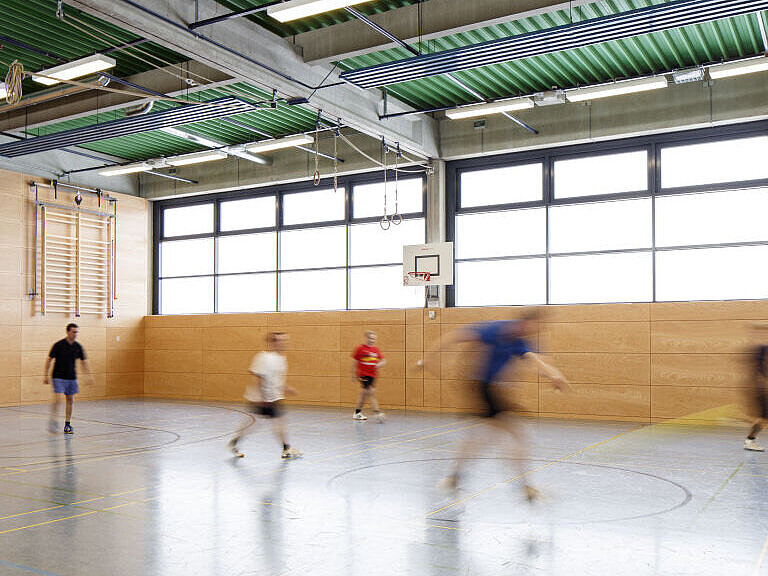

© Architektur * Ingenieurbüro Billstein — Sporthalle Lise-Meitner-Gesamtschule - OKALUX+

High Functionality

Optimal, even illumination of the room, without hard shadows
Effective sun and glare protection
High light transmission, light entry can be adjusted individually
High colour rendering
Good heat and sound insulation
Protection from UV rays
Bird-friendly solution
Fire protection according to requirements

Sustainability

Daylight entry reduces amount of artificial light required
Reduction of cooling loads in summer
Fully recyclable
Long-Lasting, maintenance-free and easy to clean

Attractive Aesthetics

Attractive appearance
Vivid surface with depth effect
Capillary inserts can be printed with colour and décor

User Comfort

Comfortable daylight atmosphere
Effective privacy protection
Reduced amount of solar input into the building

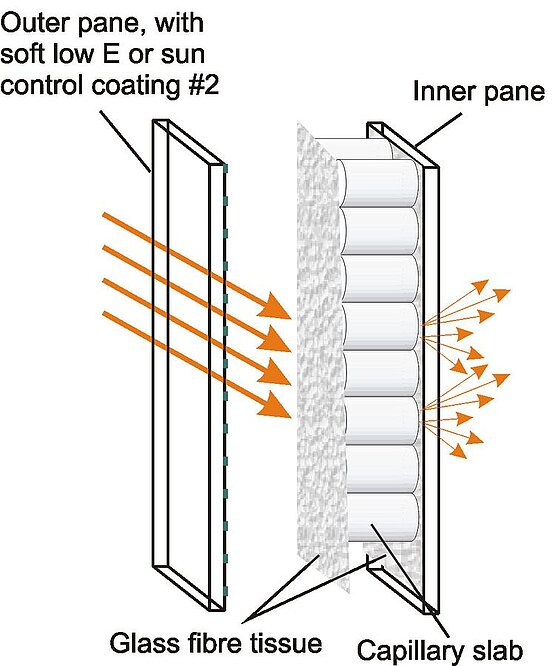

OKALUX+ – Build-up vertical glazing — Build-up vertical glazing

OKALUX+ – Build-up horizontal glazing — Build-up horizontal glazing

Maximum dimensions: 1,230 mm x 4,000 mm, larger sizes available upon request
Maximally dimensioned glazing may necessiate blunt joints or joint profiles
All technical values, such as light transmission, TSET and Ug-values can be varied by using other constructions and glass types. The Ug-value is depending on the functional coating on surface #2 and the gas filling in the cavity between panes (Air/Argon/Krypton).
