Insulating glass with functional timber insert

OKAWOOD timber grid unites high functional demands with an especially attractive design and comfortable atmosphere. A filigree timber grid in the cavity serves as direction-selective sun and glare-protection depending on the position of the sun and angle of irradiation. Daylight in a warm hue enters the interior through the gaps between the staffs. Transparency and light transmission can adjusted to the individual requirements.

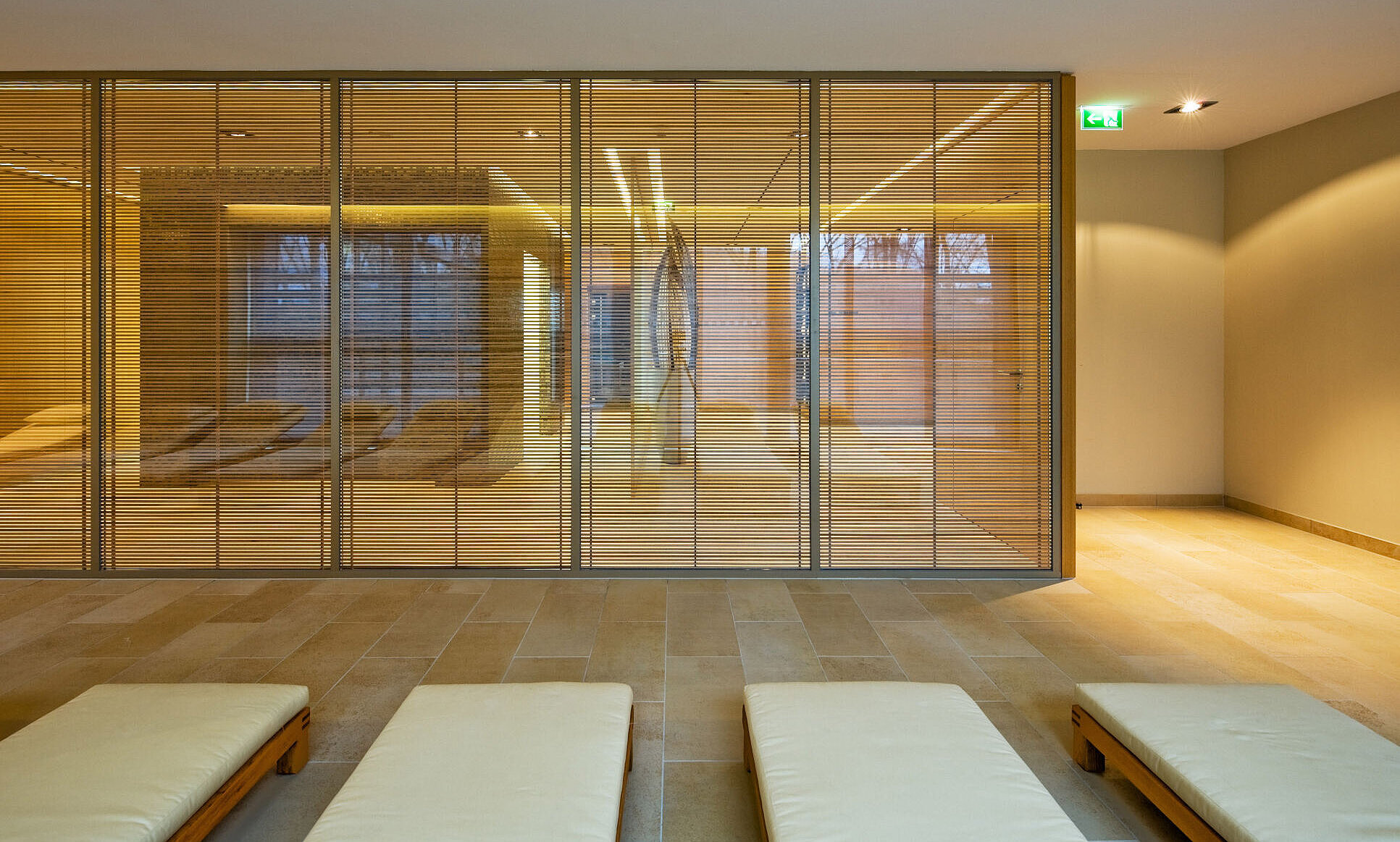

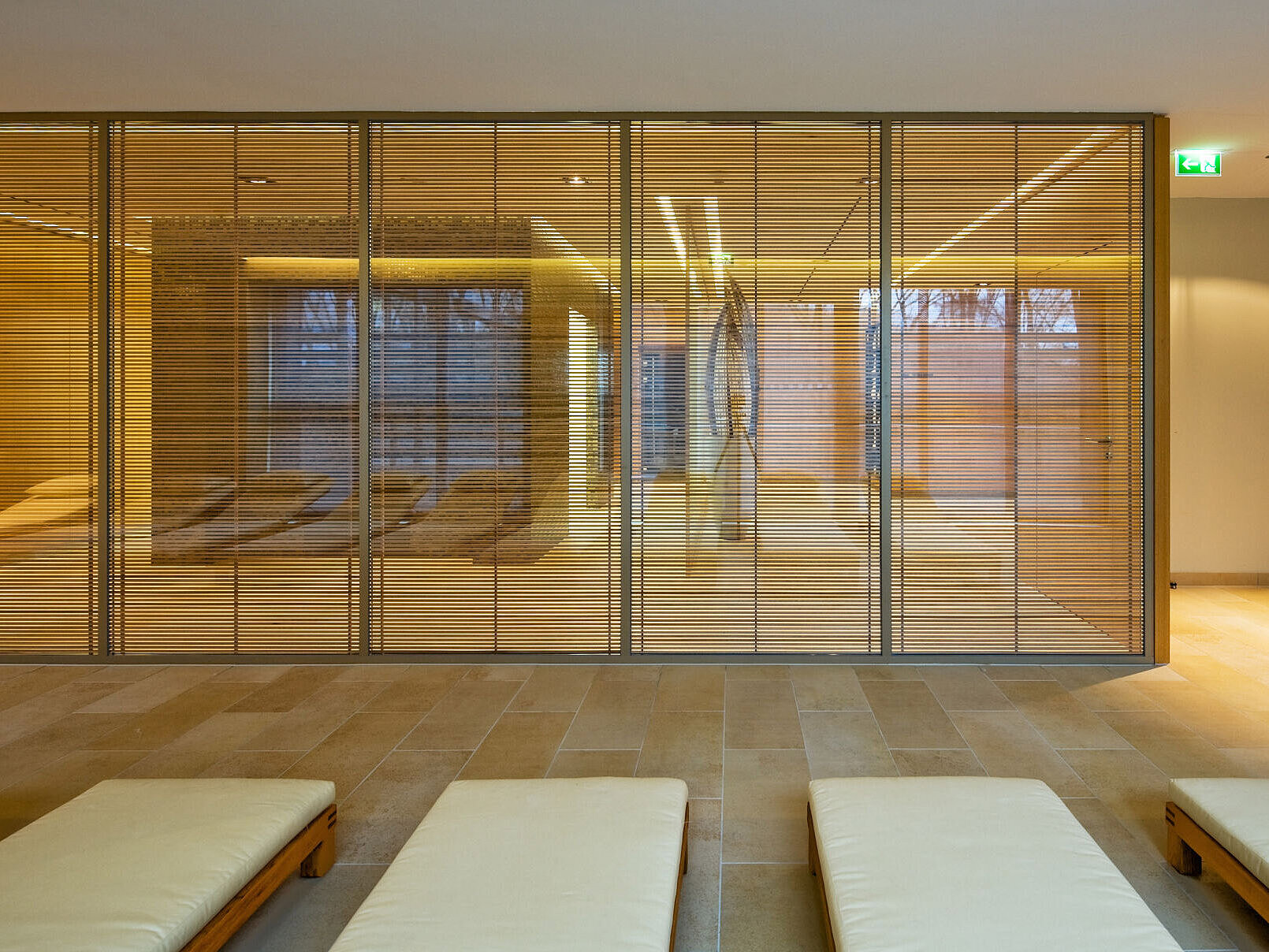

© DRUM GmbH & Co. KG — Lufthansa Training & Conference Center - OKAWOOD Timber Grid

© Architekturfotografie Frank Aussieker — Branch Bank Delmenhorst - OKAWOOD Timber Grid

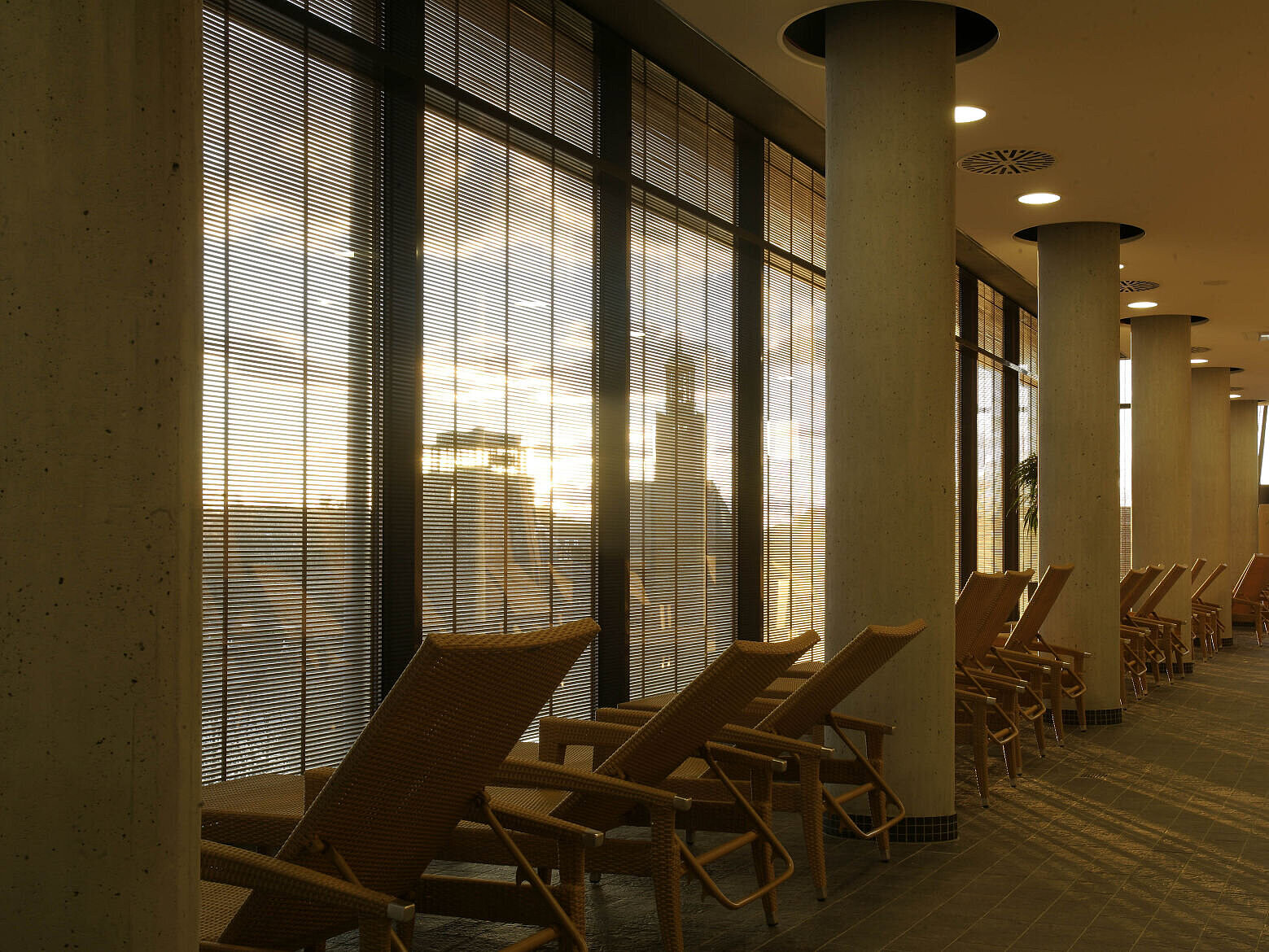

© Aquapark — Art Nouveau Bath - OKAWOOD Timber Grid

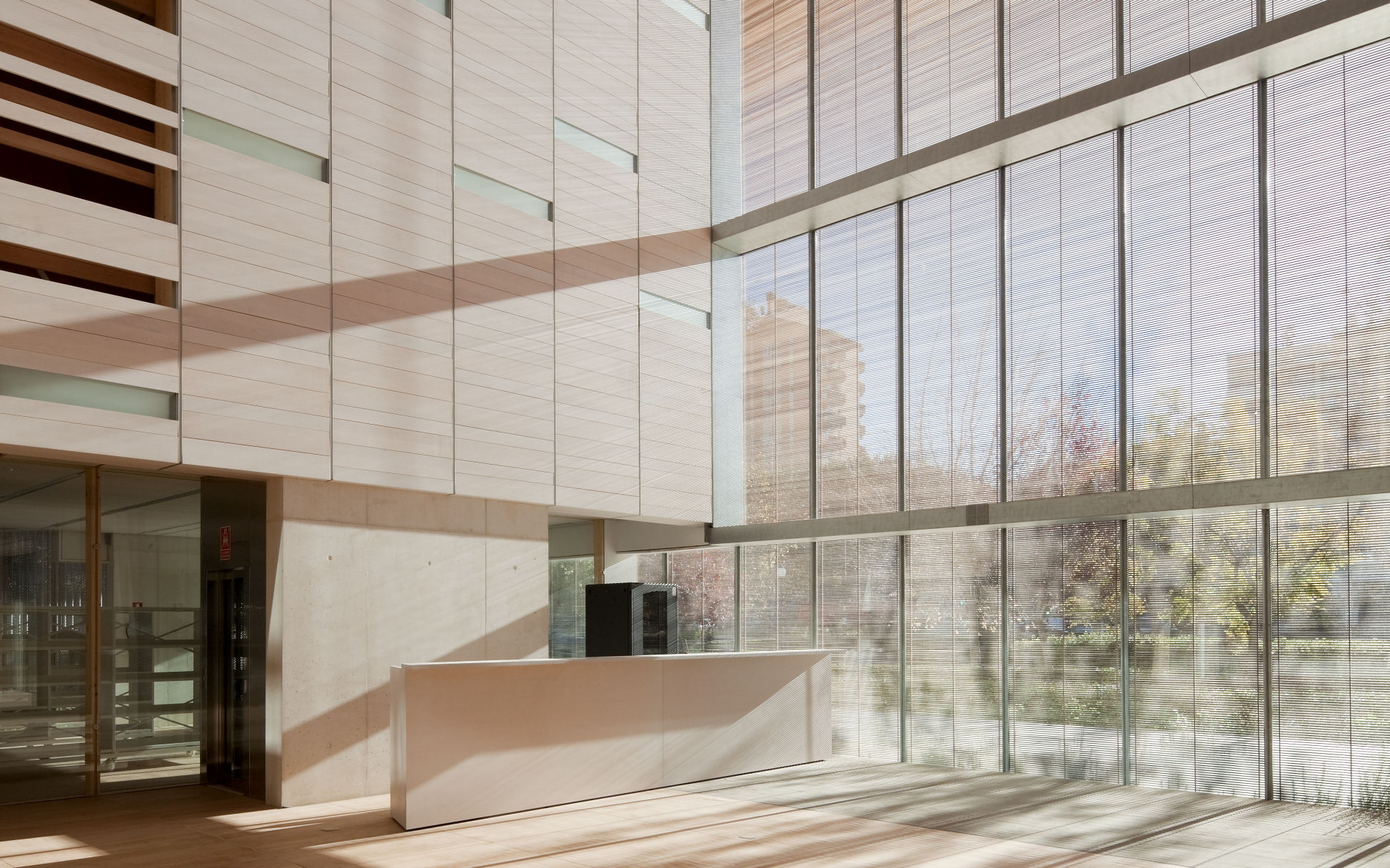

© Javier Azurmendi — Archivo Historico Provincial - OKAWOOD Timber Grid

© Amit Geron — Electra Tower - Caspi Sror Law Office - OKAWOOD Timber Grid

High Functionality

Effictive, direction selective sun and glare protection
View and light transmission can be adjusted at the factory
Embedding in a Multifunctional Module (MFM) is possible
Fire resistance according to requirements
Visibility as bird protection function

Sustainability

Renewable material
Timber Grids originate from sustainable forest cultivations
The glass protects the high-quality inserts from adverse weather conditions
Long-lasting, maintenance-free and easy to clean
Fully recyclable

Variety of Design and Attractive Aesthetics

Natural appearance with unmistakable character
Vivid building shell
Consistent design concepts from the façade to the interior can be realized
Sophisticated Interior-Design-Solutions, for example as partition, privacy or exhibition architecture

User Comfort

Comfortable atmosphere through warmly tinted light
Smart perception of sorroundings

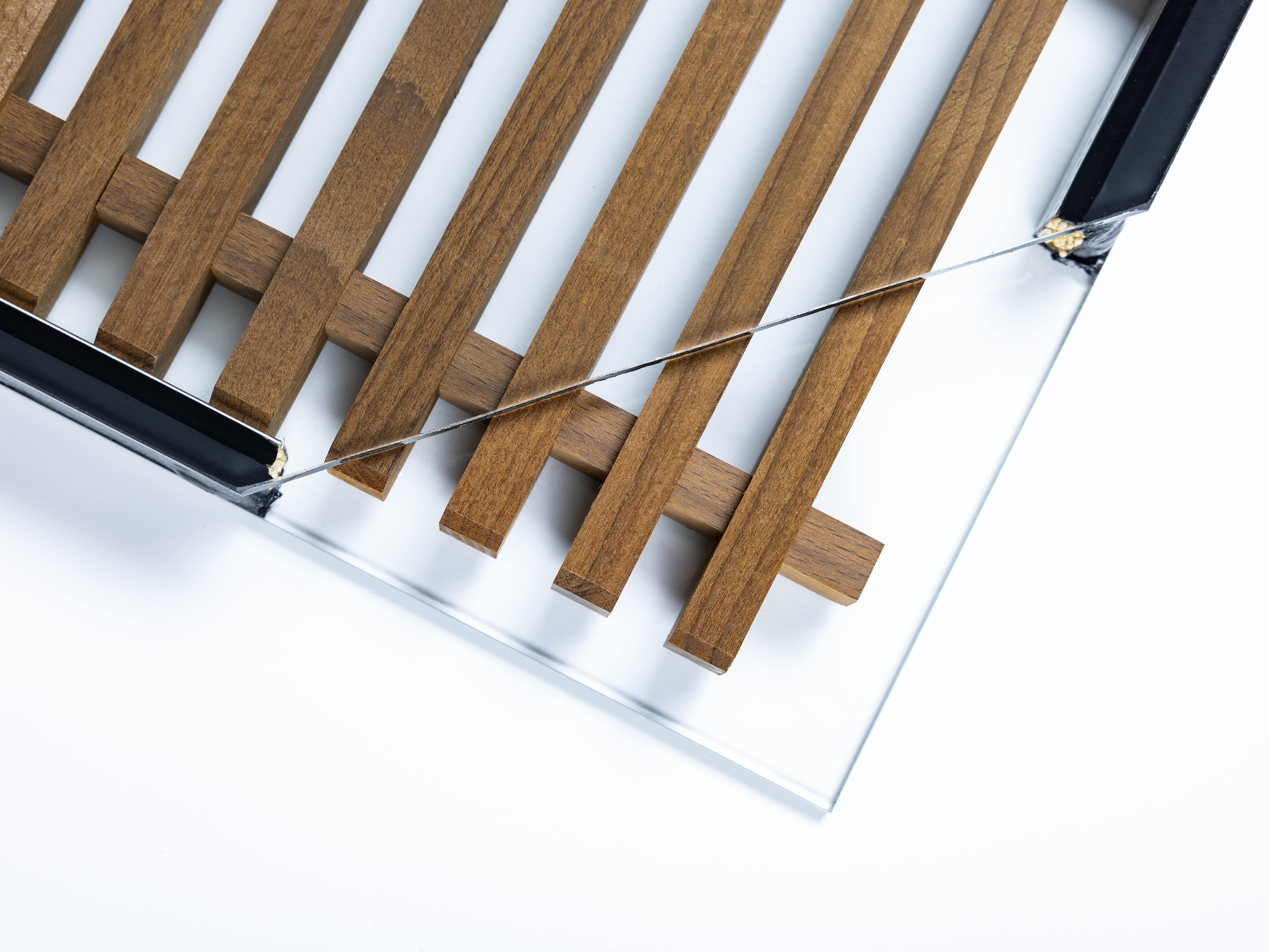

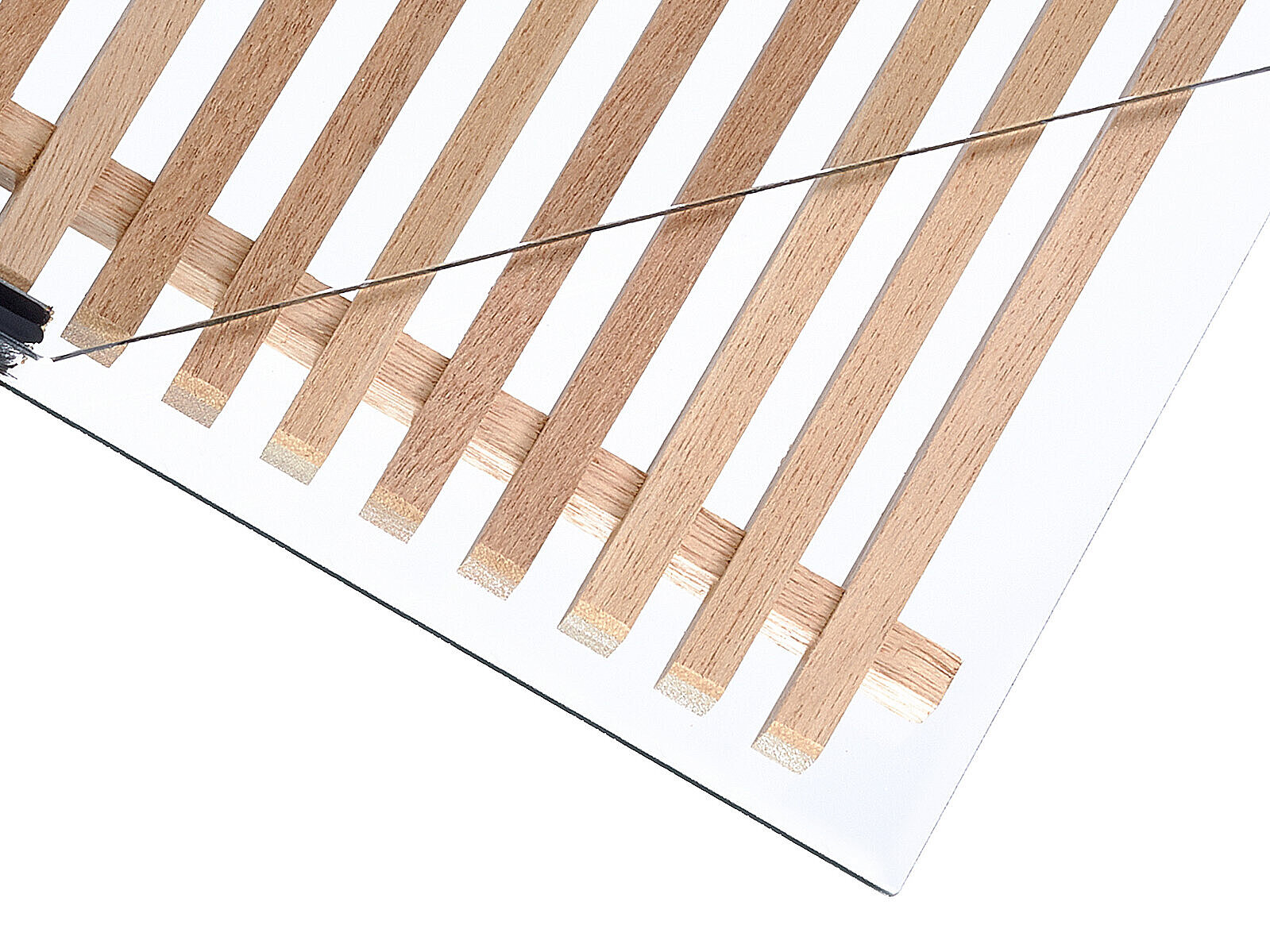

The filigree horizontal wooden rods with a face width of 10 mm are supported at intervals of 50 - 60 cm by 10 mm wide vertical joists. As a rule, the wooden insert is installed in combination with a heat insulation layer on the inner pane. We recommend toughened safety glass (ESG/ESG-H) or laminated safety glass (VSG) made of toughened glass (TVG) as the inner or outer pane.

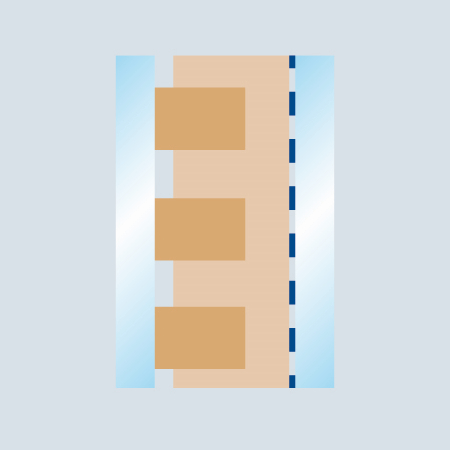

OKAWOOD Timber Grid – double glazing build-up – vertical glazing — Double glazing build-up – vertical glazing

OKAWOOD Timber Grid - build-up and principle of function — Build-up and principle of function

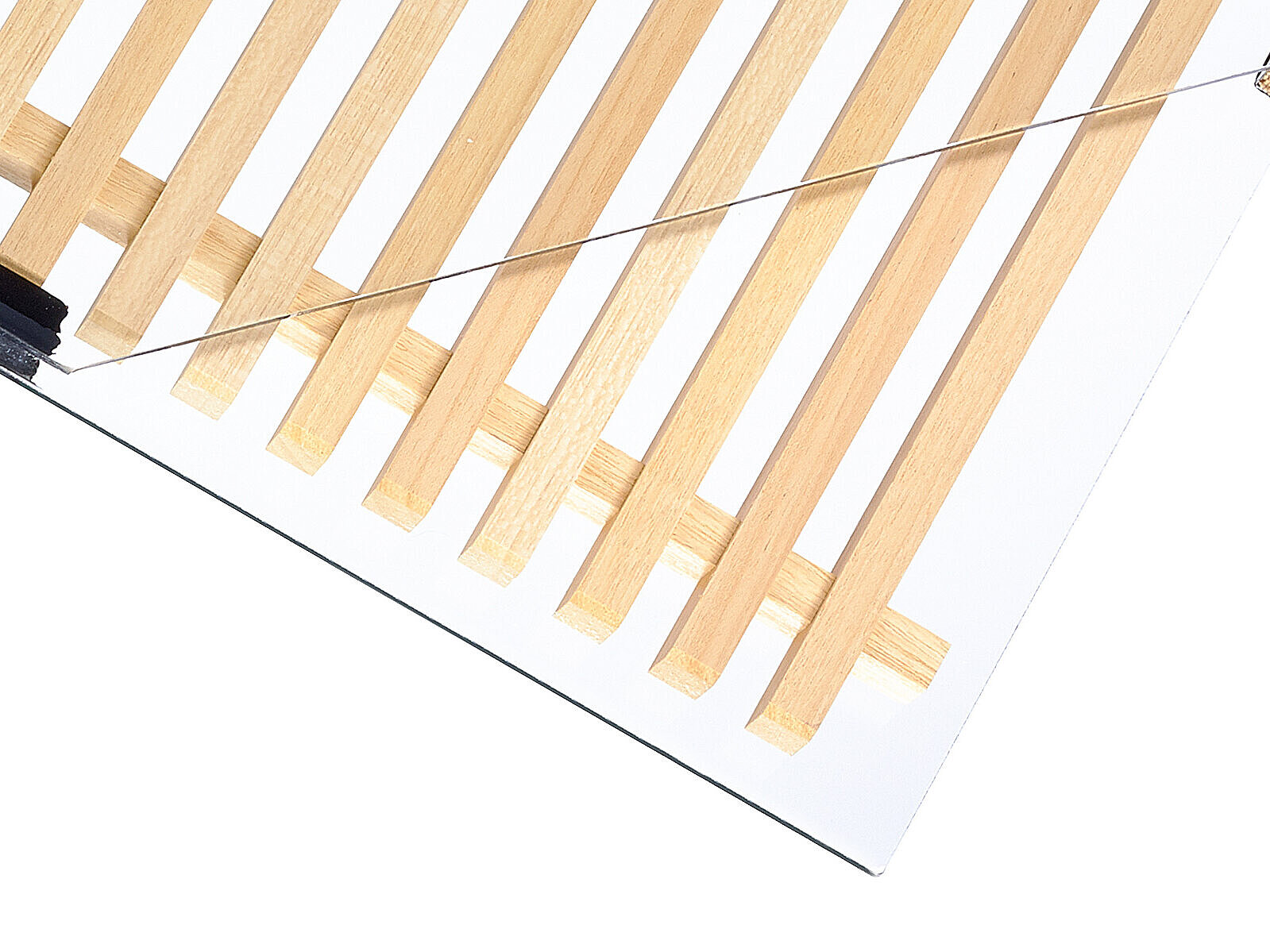

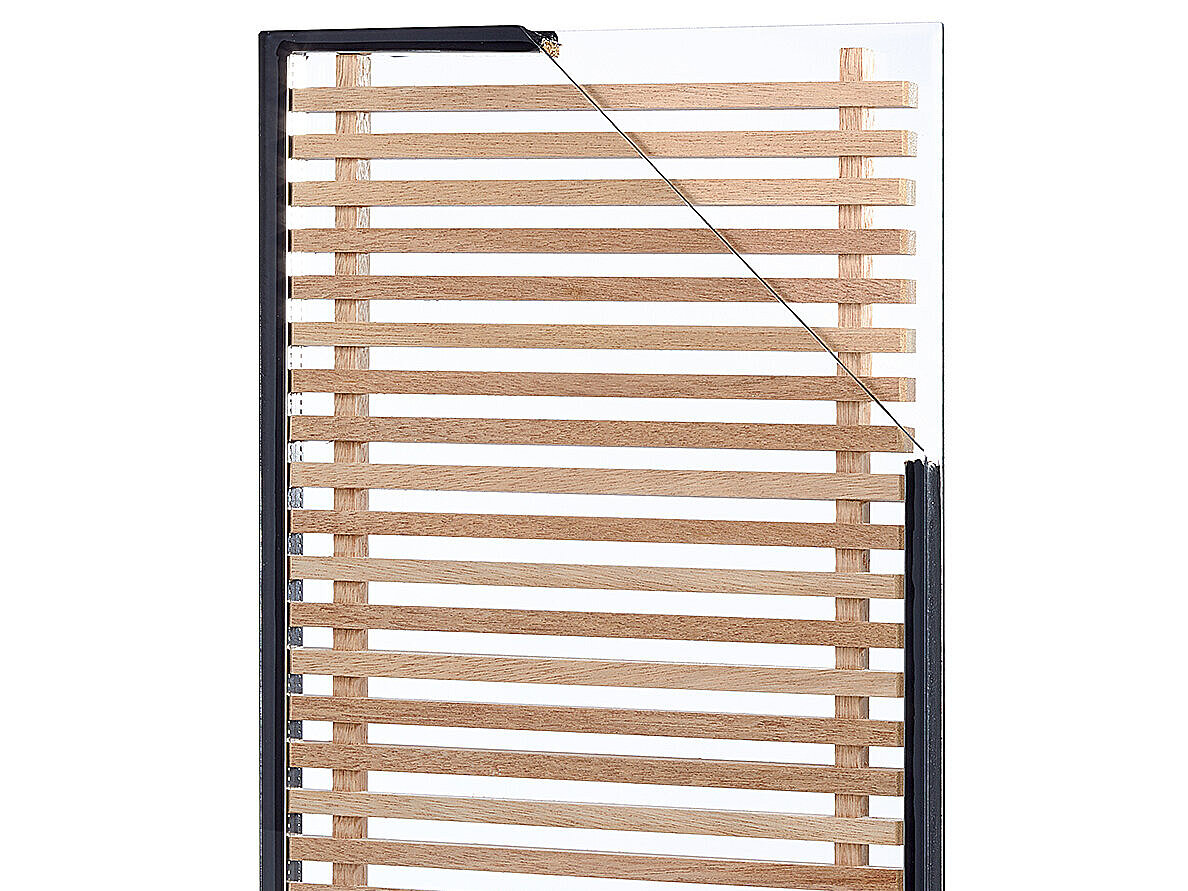

Maximum dimensions Abachi, White Seraya*: 1,700 mm x 3,500 mm, larger sizes upon request

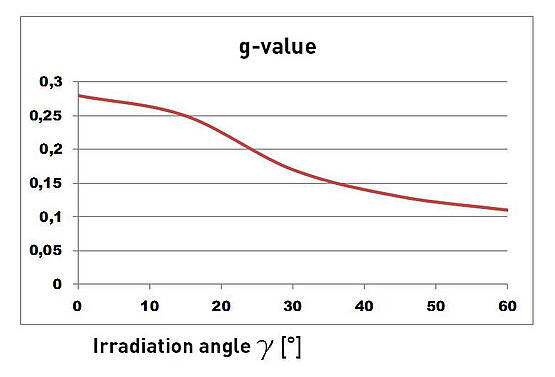

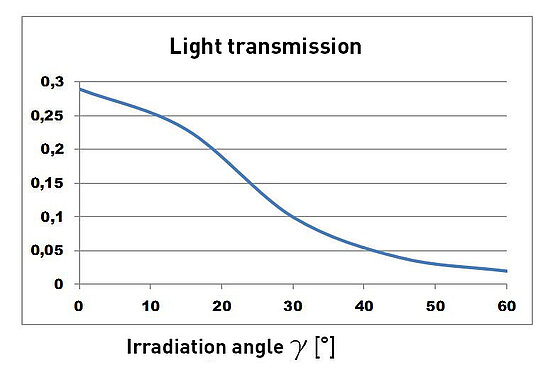

OKAWOOD timber grid	Total Thickness	U_g-value [W/(m²K)]			TSET	Light Transmission
Double glazing¹	mm	Krypton	Argon	Air	(%) min.² - max.³	(%) min.² - max.³
	18	1,3	1,6	1,9	11 - 28	2 - 30

¹ Double glazing build-up with a functional low-e coating at face #3 vertical glazing
² for angle of incidence γ = 60°
³ for angle of incidence γ = 0° (vertical to the glass surface)
*on request from 400 sqm
