OKASOLAR 3D

High-Performance Sun Protection Grid for Roof Glazing

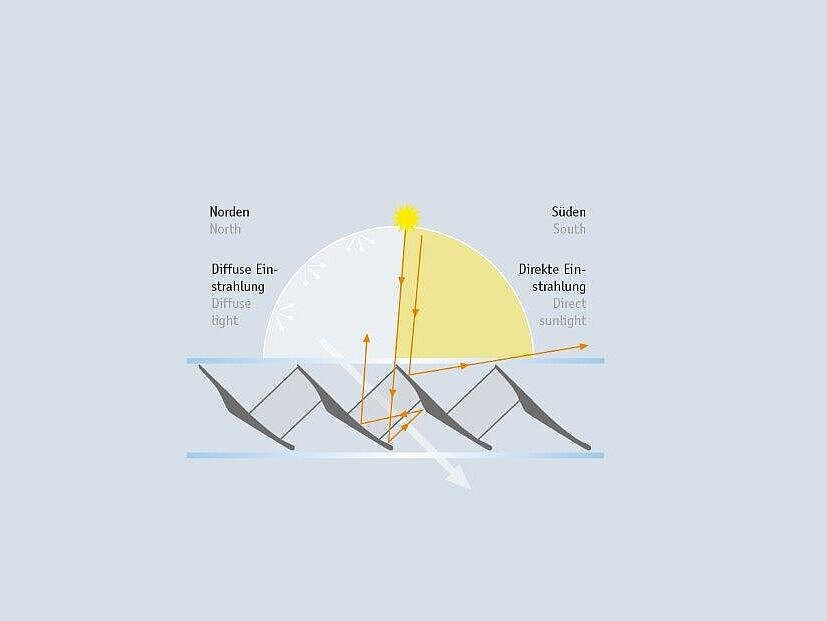

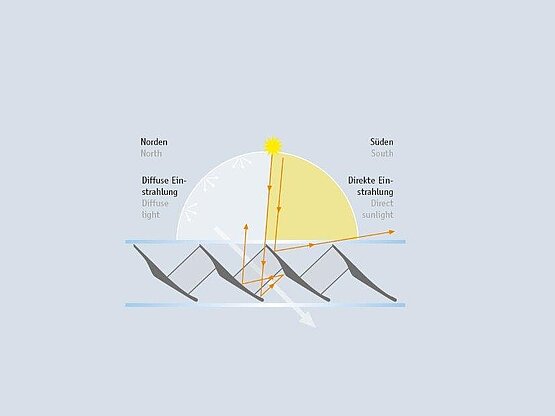

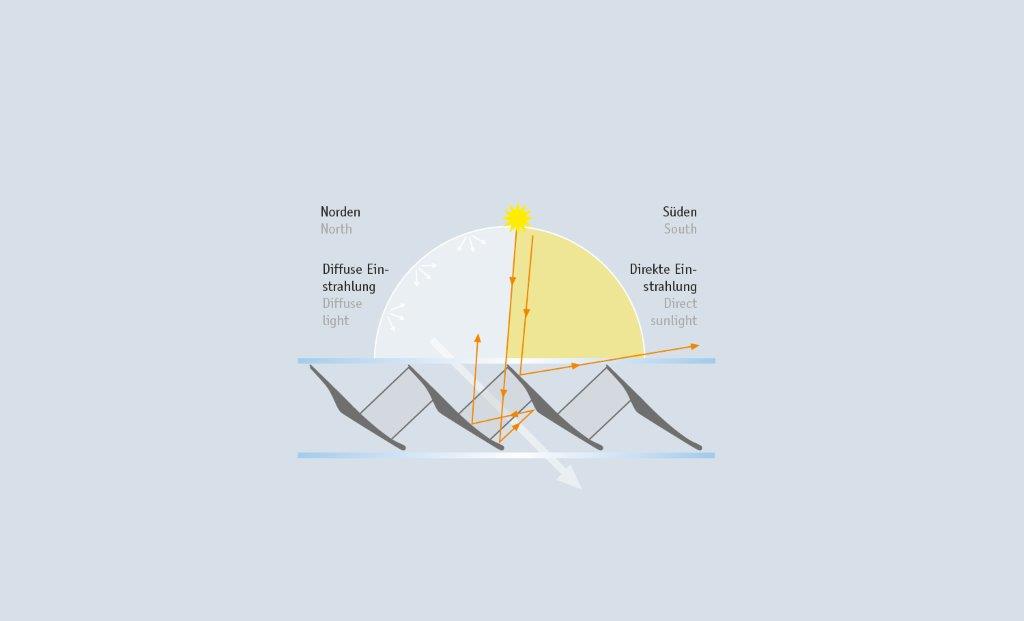

OKASOLAR 3D is an insulated glazing system with a three-dimensional, highly reflective sun protection grid in the cavity between the glass panes. The geometry of the sun protection grid has been optimised for roof applications. The direct solar transmission is blocked at all times, irrespective of the height of the sun. This effectively reduces the heat gain into the interior of the building. At the same time a large Proportion of diffuse daylight from the northern hemisphere gets into the interior. This results in even light distribution in the interior and significantly less fluctuation in brightness than with direct sunlight.
As facade glazing we recommend our products OKASOLAR W and OKASOLAR F.

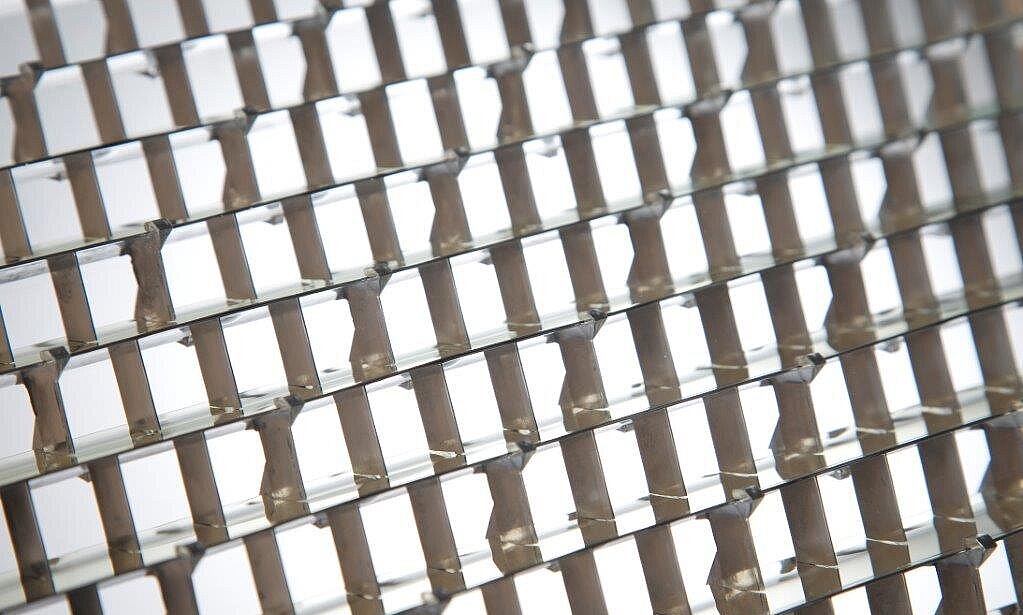

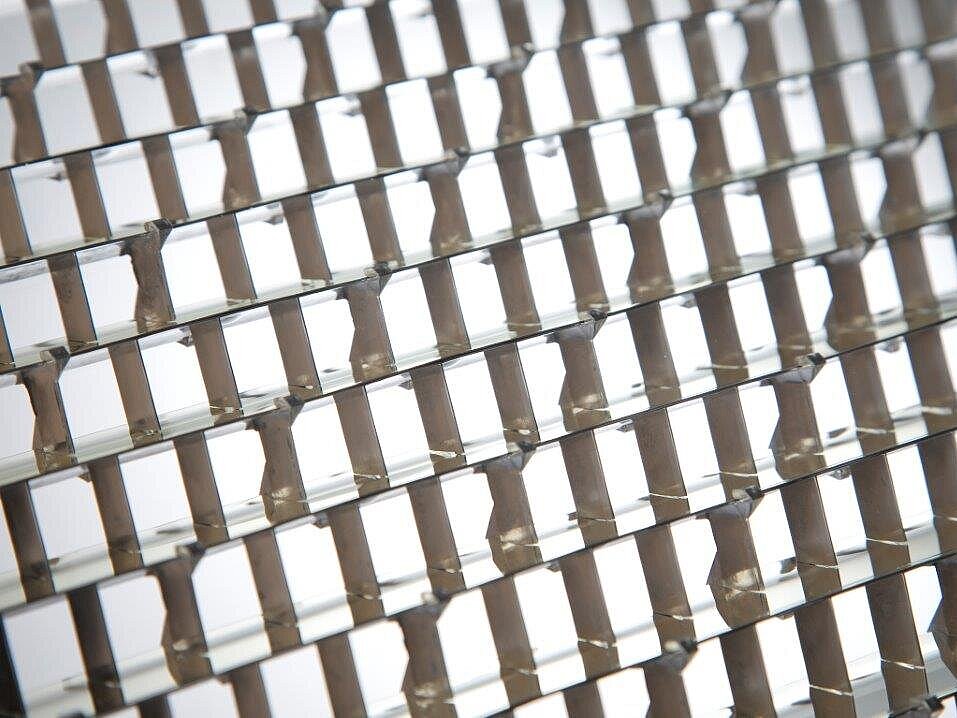

Thanks to its three-dimensional, highly reflective sun protection grid, OKASOLAR 3D offers:

  •  High-Performance sun protection
  •  Reduced heat gain
  •  Low TSET
  •  High light Transmission
  •  Partial trough-vision to the North
  •  Homogenous appearance without joints
  •  Sufficient daylight and reduction of artificial light
  •  Maintenance and fault-free
  •  Can be easily recycled
  •  Visibility for birds

The special feature of OKASOLAR 3D is that the sun protection grid is integrated into the cavity of the insulated glazing system, so there are special requirements with regard to installation, maintenance or repair, and the entire system can be treated just like standard insulated glazing. The thickness and type of glass depend on structural and building requirements. However, for structural reasons the bending radius is to be limited to 12 m under Deformation.

2-pane build-up:

Outer pane made of thermally treated glass with surrounding screen-print at face #2
Cavity: 24 mm with integrated sun protection grid and gas filling
Inner pane: LSG made of float glass or Heat Strengthened Glass with low-e coating at face #3

3-pane build-up:

Outer pane made of thermally treated glass with surrounding screen-print at face #2
Cavity 1: 24 mm with integrated sun protection grid and gas filling
Intermediate pane made of float glass or thermally treated glass with low-e coating at face #3
Cavity 2: 8 to 12 mm with gas filling
Inner pane: LSG made of float glass or Heat Strengthened Glass with low-e coating at face #5

  • Glass dimension parallel to main louvre axis max. 3000 mm

  • Glass dimension perpendicular to main louvre axis max. 3000 mm

  • The maximum area is 7 m². Special shapes are possible.

Type
OKASOLAR
Tv direct
%
TV diffuse % g-value
%
Ug-value
[W/(m²K)]  /  [Btu/(hfr ft²F)]Cavity

24 mm/12mm
2-pane build-up with
low-e coating
Lock-
out
area
Area
of trans-
mission
Vertical   Lock-out
area
Average
Lock-out
area
Vertical Krypton Argon Air
3D 44/23 4-8 70 20 27 8-19 10 37 1,4 / 0.25 1,6 / 0.28 2,0 / 0.35
Type
OKASOLAR
Tv direct
%
TV diffuse % g-value
%
Ug-value
[W/(m²K)]  / [Btu/(hfr ft²F)]Cavity
24 mm/12mm
3-pane build-up with
low-e coating
Lock-
out
area
Area
of trans-
mission
Vertical   Lock-
out
area
Average
Lock-out
area
Vertical Krypton Argon Air
3D 44/23 4-7 60 20 23 7-14 10 23 0,7 / 0.12 0,8 / 0.14 1,1 / 0.19

References

Angenehme Raumtemperatur in ehemaliger Berliner Eisfabrik Berlin

| OKASOLAR 3D

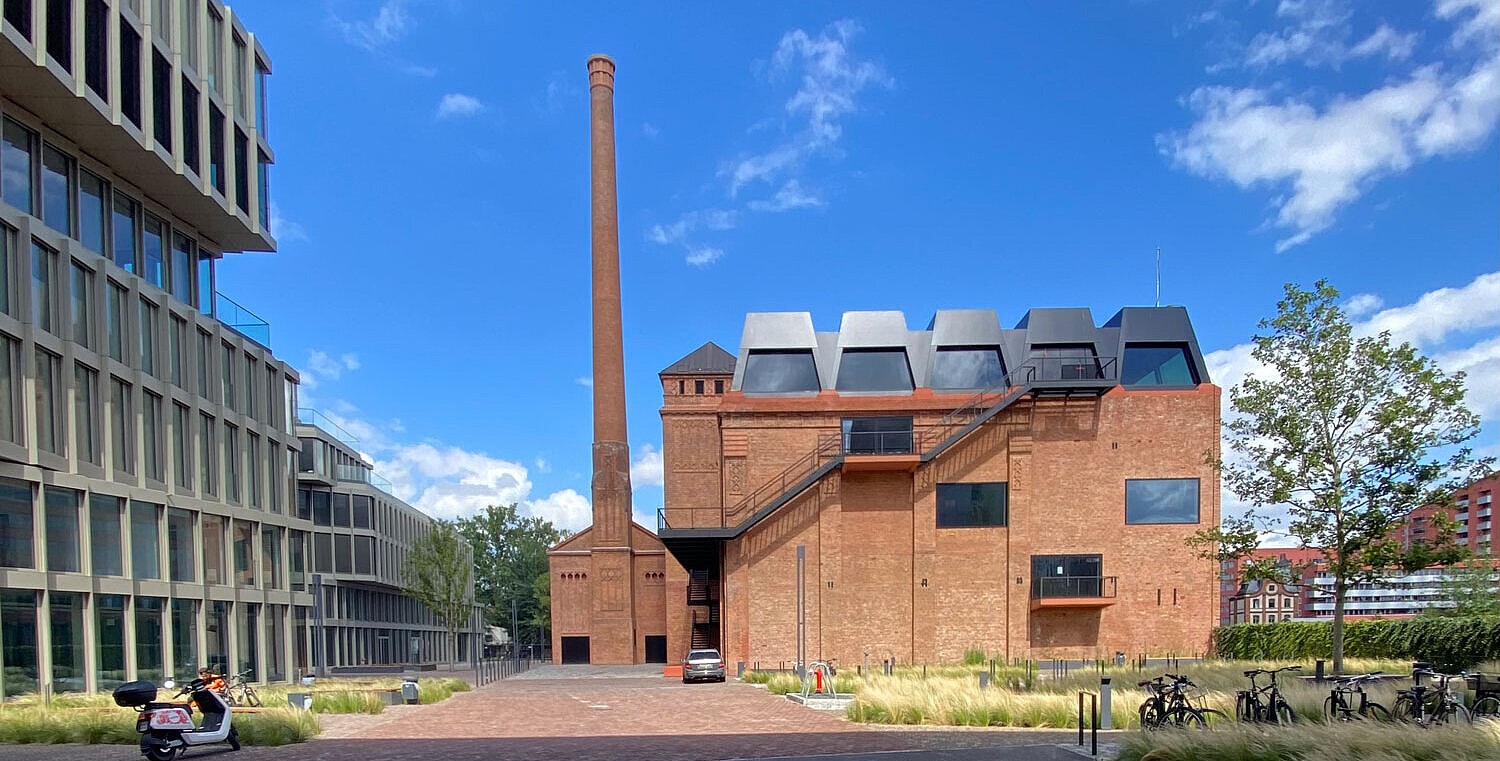

Cool without ice: Former Ice Factory, Berlin

Find out more

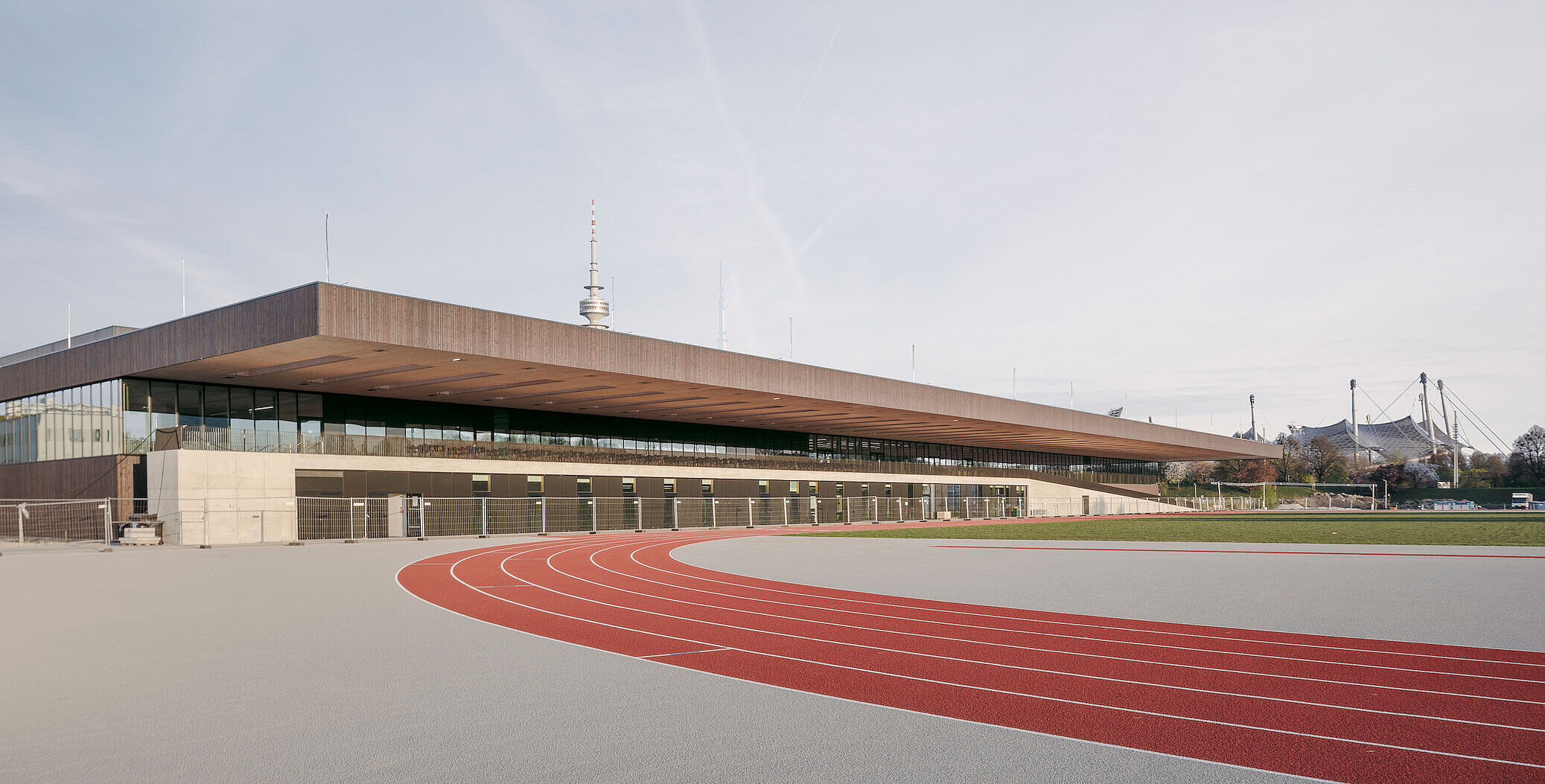

Sportstätte der Superlative – CiO München Munich

| SILVERSTAR/OKASOLAR

Outstanding Sports Campus – CiO Munich

Find out more
Intelligente Dachverglasung für Schulmensa Munich

| OKASOLAR 3D

Intelligent roof glazing for school building

Find out more

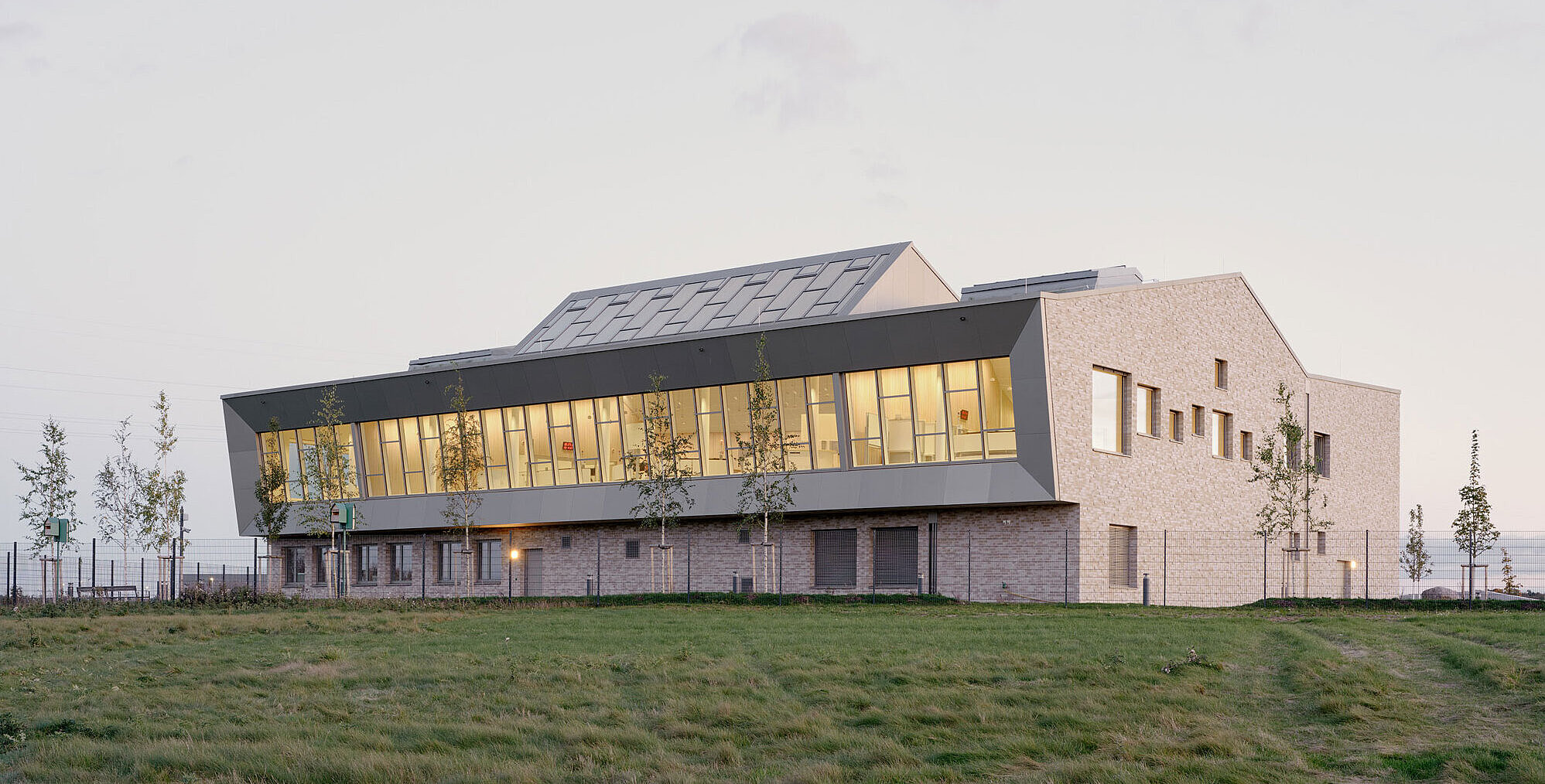

Helle Räume für helle Köpfchen Kiel
