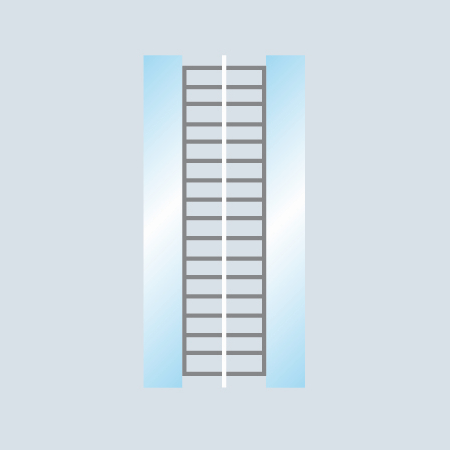

OKALUX EVO light-diffusing insulating glass offers numerous advantages: The capillary slab in the cavity allows for an even and shadow-free illumination with daylight deep into the room. The sun and glare-protection are very good, the heat insulation excellent and the transmission values individually adjustable to the requirements.

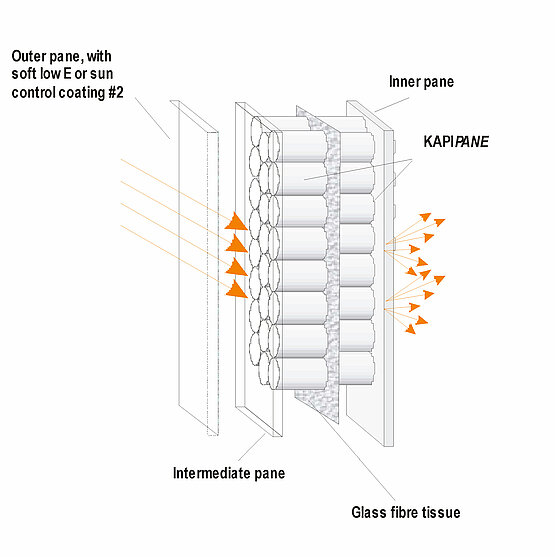

The fiber glass mat located only between the two capillary slabs is visible from both sides of the OKALUX EVO and creates an attractive lively surface.
High Functionality
- Optimal, even illumination of the room, without hard shadows
- Effective sun and glare protection
- High light transmission, light entry can be adjusted individually
- High colour rendering
- Good heat and sound insulation
- Protection from UV rays
- Bird-friendly solution
- Fire protection according to requirements
Sustainability
- Daylight entry reduces amount of artificial light required
- Reduction of cooling loads in summer
- Fully recyclable
- Long-Lasting, maintenance-free and easy to clean
Attractive Aesthetics
- Attractive appearance
- Vivid surface with depth effect
- Capillary inserts can be printed with colour and décor
User Comfort
- Comfortable daylight atmosphere
- Effective privacy protection
- Reduced amount of solar input into the building
- Maximum dimensions: 2,000 mm x 6,000 mm, larger sizes available upon request
- All technical values, such as light transmission, TSET and Ug-values can be varied by using other constructions and glass types.

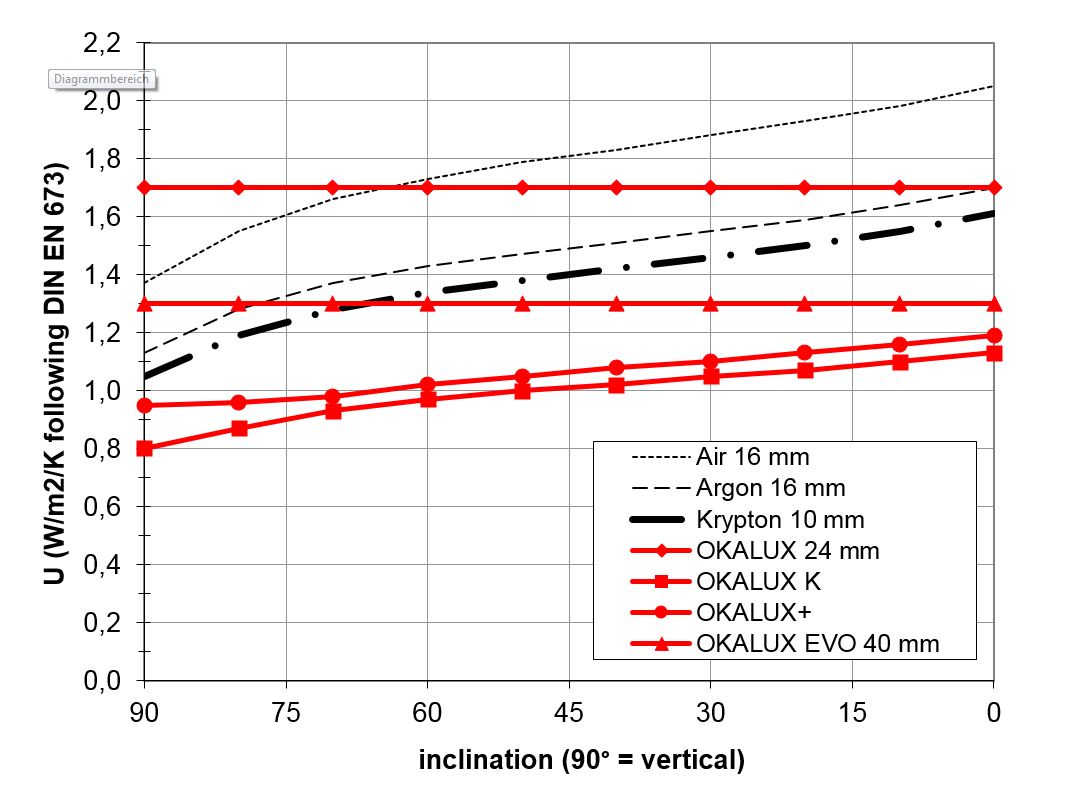

- The Ug-value for the various versions is dependent, among other things, on:
- the thickness of the KAPIPANE insert: 16 - 40 mm (2-pane make-up)
- the functional coating on surface #2 (3-pane make-up)
- the filling gas in the cavity between panes (Air/Argon/Krypton)
OKALUX EVO | Total Thickness | Ug-value [W/(m2K)] | TSET | Light Transmission | |||
---|---|---|---|---|---|---|---|
Double Glazing | mm | Krypton | Argon | Air | SHGC (%) direct | (%) direct | |
from 16 | - | - | 2.0 - 1.3 | 27 - 45 | 21 - 43 |
OKALUX EVO | Total Thickness | Ug-value [W/(m2K)] | TSET | Light Transmission | ||
---|---|---|---|---|---|---|
Triple Glazing | mm | Krypton | Argon | Air | SHGC (%) direct | (%) direct |
from 28 | 0.8 | 1.0 | 1.1 - 1.2 | 20 - 36 | 31 - 42 |
