KAPILUX W light-diffusing insulating glass offer numerous advantages: The transparent capillary slabs in the cavity allow for an even and shadow-free illumination with daylight deep into the room. The sun and glare-protection are very good, and the heat insulation is improved by the capillary tubes. The transmission values can be individually adjusted to the requirements.
What makes it different from KAPILUX T with transparent capillaries is that these are colored white in KAPILUX W, thus satisfying increased requirements on sun and glare-protection.
High Functionality
- Optimal, even illumination of the room, without hard shadows
- Effective sun and glare protection
- High light transmission, light entry can be adjusted individually
- High colour rendering
- Good heat and sound insulation
- Protection from UV rays
- Bird-friendly solution
- Fire protection according to requirements
Sustainability
- Daylight entry reduces amount of artificial light required
- Reduction of cooling loads in summer
- Fully recyclable
- Long-Lasting, maintenance-free and easy to clean
Attractive Aesthetics
- Attractive appearance
- Vivid surface with depth effect
- Capillary inserts can be printed with colour and décor
User Comfort
- Comfortable daylight atmosphere
- Effective privacy protection
- Reduced amount of solar input into the building
- Partial Vision
-
Maximum dimensions: 2,400 mm x 6,000 mm, larger sizes available upon request
-
All technical values, such as light transmission, TSET and Ug-values can be varied by using other constructions and glass types.

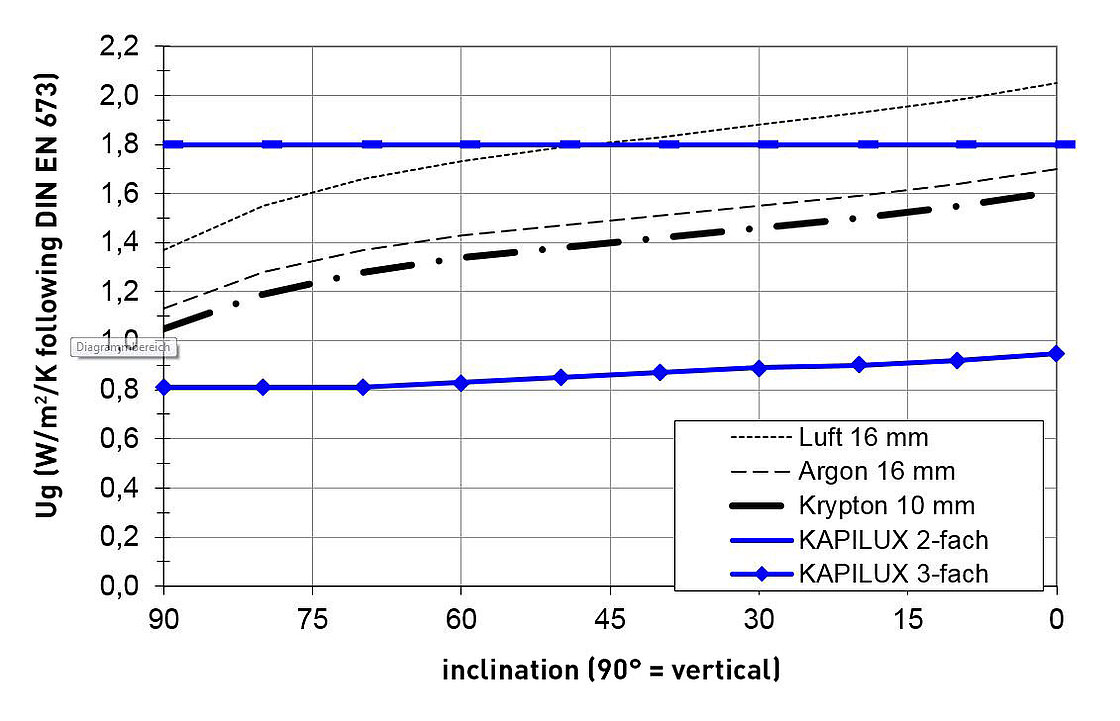

KAPILUX W | Total Thickness | Ug-value [W/(m2K)] | TSET | Light Transmission | |||
---|---|---|---|---|---|---|---|
Double Glazing | mm | Krypton | Argon | Air | SHGC (%) direct | (%) direct | |
from 28 | - | - | 1.8 | 37 | 38 |
KAPILUX W | Total Thickness | Ug-value [W/(m2K)] | TSET | Light Transmission | ||
---|---|---|---|---|---|---|
Triple Glazing | mm | Krypton | Argon | Air | SHGC (%) direct | (%) direct |
from 42 | 0.8 | 1.0 | 1.1 - 1.2 | 17 - 29 | 26 - 35 |
