KAPILUX T

Capillary System with Transparent Capillary Slabs

KAPILUX T light-diffusing insulating glass offers numerous advantages: The transparent capillary slabs in the cavity allow for an even and shadow-free illumination with daylight deep into the room. The sun and glare-protection are very good, and the heat insulation is improved by the capillary tubes. The transmission values can be individually adjusted to the requirements.

Characteristic for KAPILUX T is that the structure of the transparent capillary tubes is visible from both sides. The capillary inserts allow the product to meet high requirements on light transmission and sun protection. The build-up also allows for partial transparency creating the illusion of depth and a lively appearance.

High Functionality

  • Optimal, even illumination of the room, without hard shadows
  • Effective sun and glare protection
  • High light transmission, light entry can be adjusted individually
  • High colour rendering
  • Good heat and sound insulation
  • Protection from UV rays
  • Bird-friendly solution
  • Fire protection according to requirements

Sustainability

  • Daylight entry reduces amount of artificial light required
  • Reduction of cooling loads in summer
  • Fully recyclable
  • Long-Lasting, maintenance-free and easy to clean

Attractive Aesthetics

  • Attractive appearance
  • Vivid surface with depth effect
  • Capillary inserts can be printed with colour and décor

User Comfort

  • Comfortable daylight atmosphere
  • Effective privacy protection
  • Reduced amount of solar input into the building
  • Partial Vision

  • Maximum dimensions: 2,400 mm x 6,000 mm, larger sizes available upon request

  • All technical values, such as light transmission, TSET and Ug-values can be varied by using other constructions and glass types.

KAPILUX T Total Thickness Ug-value [W/(m2K)] TSET Light Transmission
Double Glazing mm Krypton Argon Air SHGC (%) direct (%) direct
from 28 - - 1.8 64 68
KAPILUX T Total Thickness Ug-value [W/(m2K)] TSET Light Transmission
Triple Glazing mm Krypton Argon Air SHGC (%) direct (%) direct
  from 42 0.8 1.0 1.1 - 1.2 26 - 47 46 - 62

References

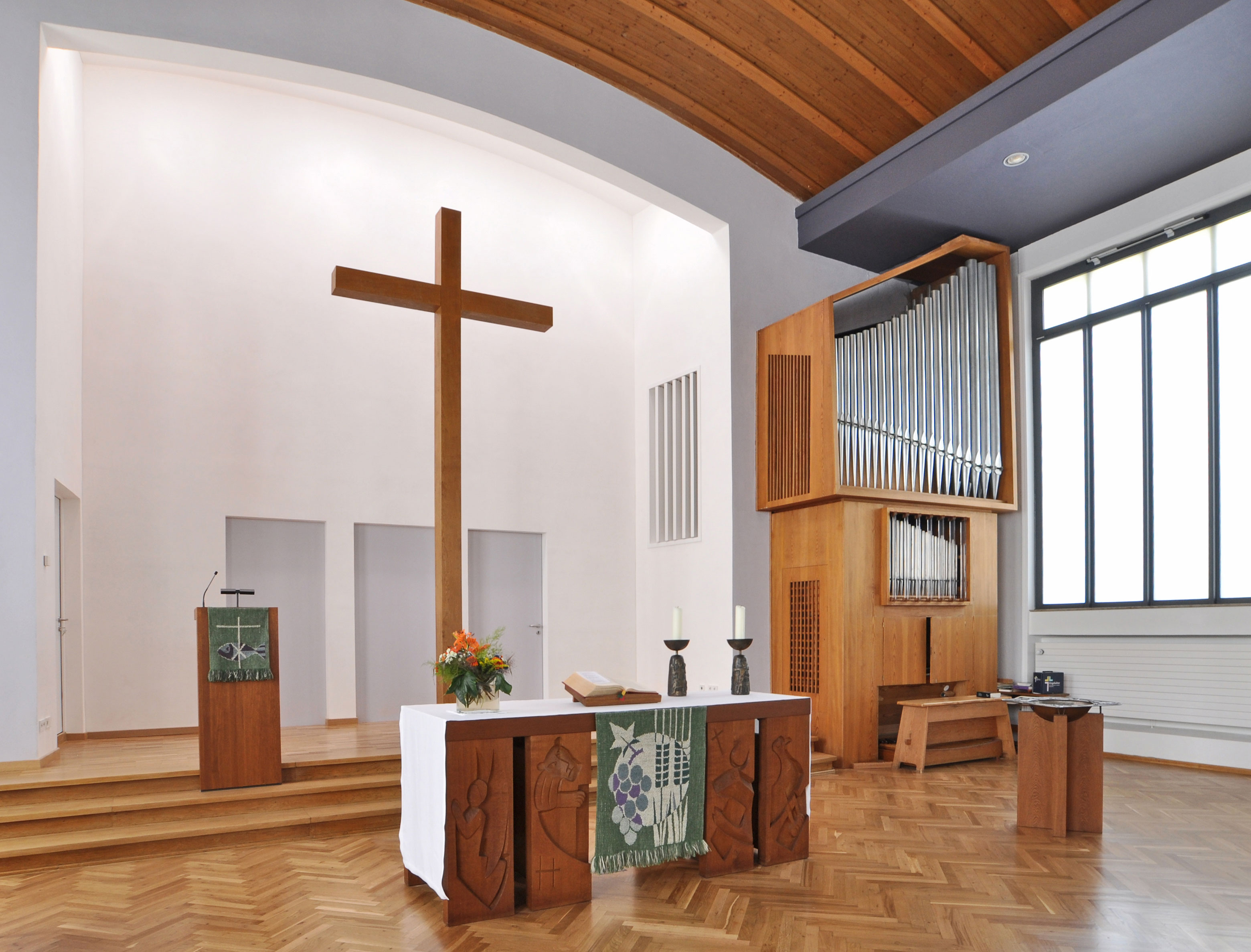

Stabilität und Ruhe Stuttgart

| KAPILUX T

Stability and calm

Find out more

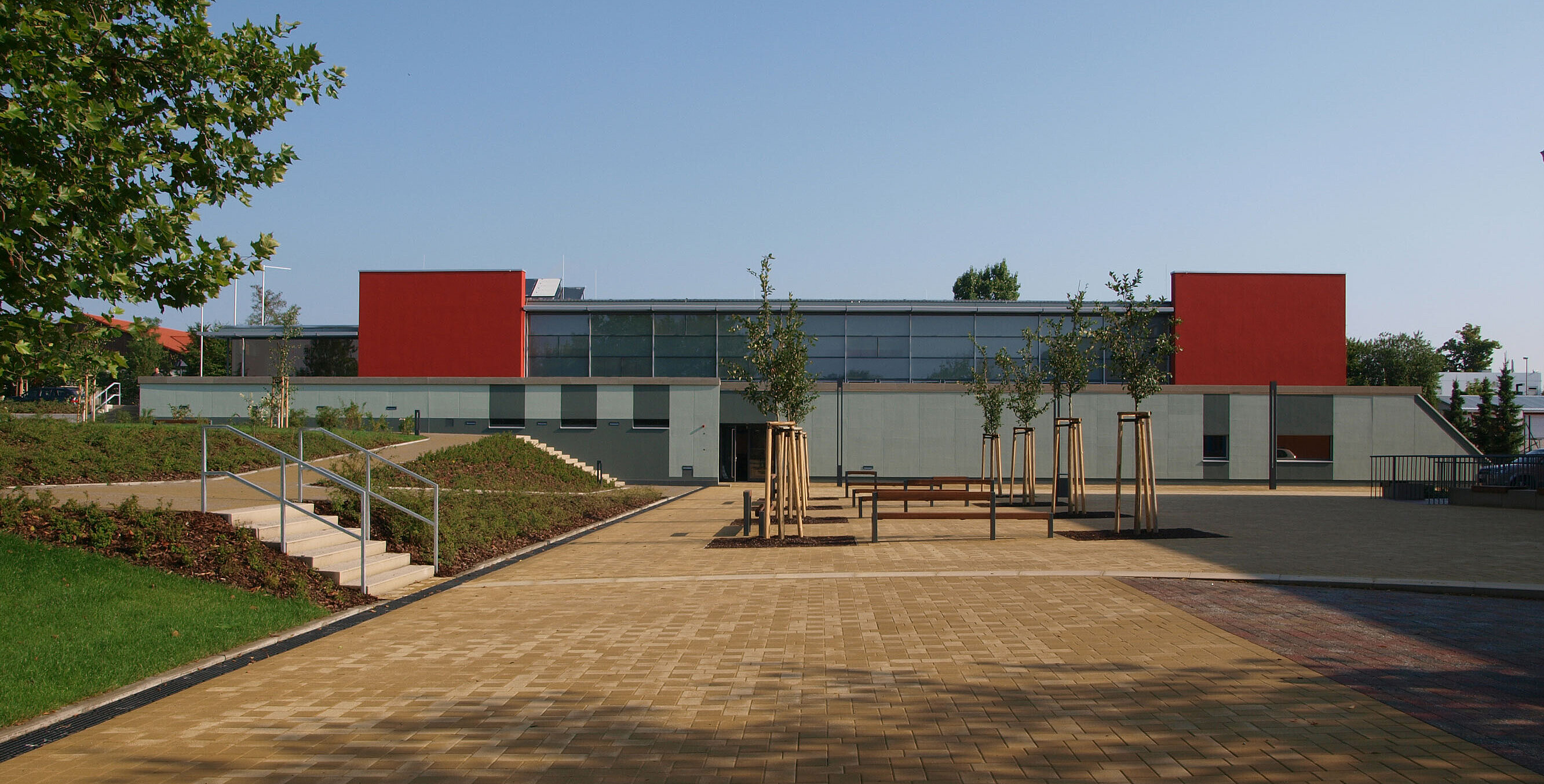

Eine sportliche Dreifaltigkeit Bautzen
