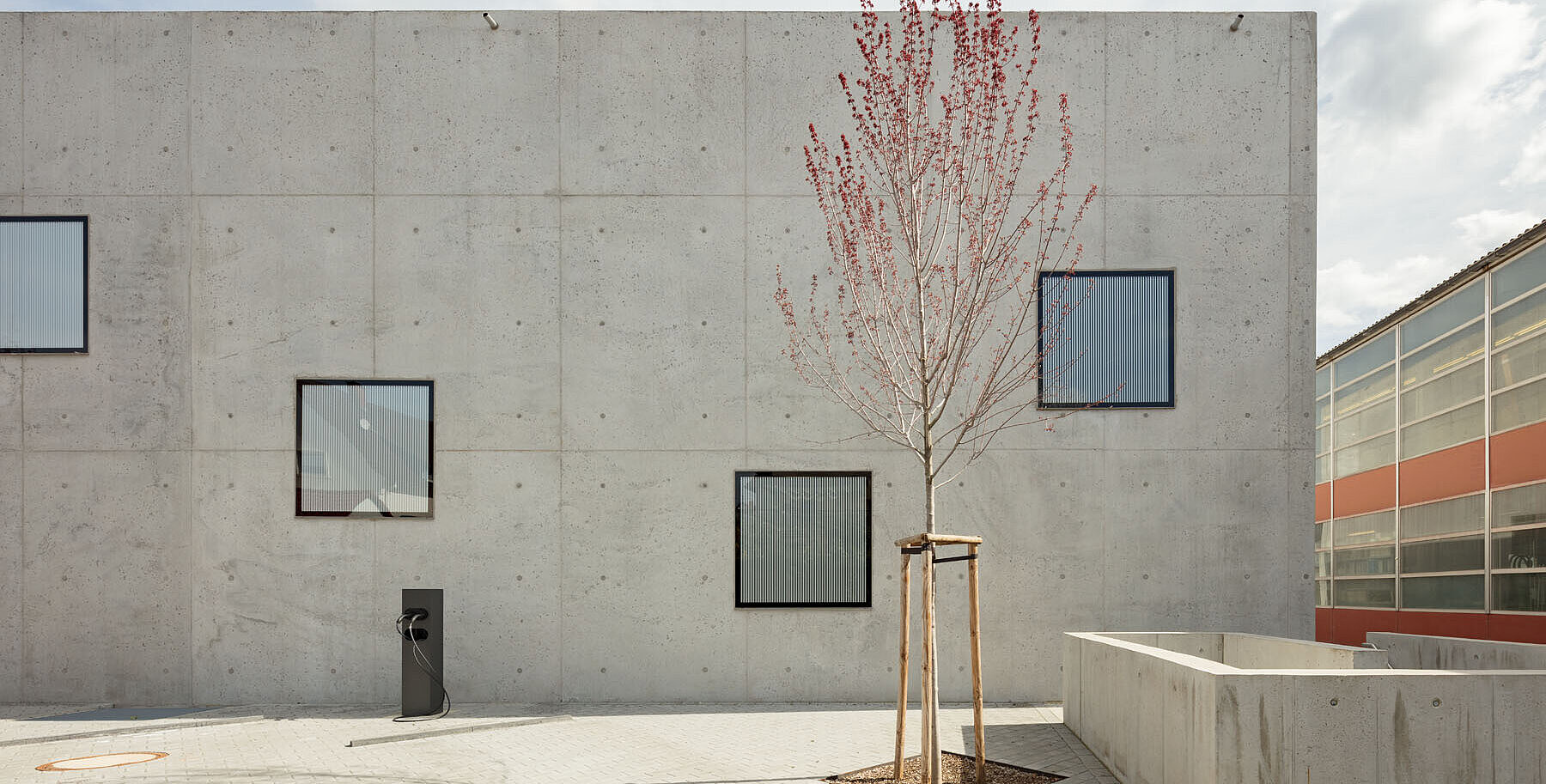

OKASOLAR P is an insulating glass with fixed; vertical louvres in the cavity between the glass panes.
OKASOLAR P enables partial transparency in one direction at the same time as privacy screening adapted to individual requirements in the other direction, and has been optimised for use in the building façade.
Thanks to its three-dimensional geometry, OKASOLAR P offers: :
- Direction-sensitive privacy screening
- Partial trough-vision
- High daylight levels
- Can be easily recycled
- Visibility for birds
The special feature of OKASOLAR P is that the louvres for privacy screening are integrated in the cavity between the glass and therefore pose no special requirements concerning the installation, maintenance and cleaning. In fact, the OKASOLAR element can be treated like conventional insulating glass. The glass thickness and type are based on the structural needs and constructional requirements.
2-pane build-up:
Outer pane made of thermally treated glass
Cavity: 24 mm with integrated louvres and gas filling
Inner pane made of thermally treated glass, heat-reflective layer #3
3-pane build-up:
Outer pane made of thermally treated glass
Cavity 1: 24 mm with integrated louvres and gas filling
Inner pane made of thermally treated glass, heat-reflective layer #3
Cavity 2: 8 to 12 mm with gas filling
Inner pane made of thermally treated glass, heat-reflective layer #5
- Glass dimension parallel to Louvre axis max. 3,000 mm
- Glass dimension perpendicular to louvre axis max. 1,000 mm
- Louvre length: max. 3,000 mm
- The maximum area is 3 m². Special shapes are possible.
| Type OKASOLAR | Tv % | g-value % | Ug value [W/(m²K)] Ug [Btu/(hfr ft² °F)] Cavity 24 mm | ||
|---|---|---|---|---|---|
| 2-pane-build-up with thermal control coating | Krypton | Argon | Air | ||
| P 30-0 | 1 | 3 | 1,3 | 1,5 | 1,7 |
| P 30-08 | 28 | 25 | 1,3 | 1,5 | 1,7 |
| P 30-23 | 43 | 37 | 1,3 | 1,5 | 1,7 |
| Type OKASOLAR | Tv % | g-value % | Ug value [W/(m²K)] Ug [Btu/(hfr ft² °F)] Cavity 24 mm | ||
|---|---|---|---|---|---|
2-pane-build-up with low-e coating | Krypton | Argon | Air | ||
| P 30-0 | 1 | 12 | 1,3 | 1,5 | 1,7 |
| P 30-08 | 24 | 23 | 1,3 | 1,5 | 1,7 |
| P 30-23 | 38 | 25 | 1,3 | 1,5 | 1,7 |
| Type OKASOLAR | Tv % | g-value % | Ug value [W/(m²K)] Ug [Btu/(hfr ft² °F)] Cavity 24 mm | ||
|---|---|---|---|---|---|
| 3-pane-build-up with low-e coating | Krypton | Argon | Air | ||
| P 30-0 | 1 | 1 | 0,6 | 0,8 | 1,0 |
| P 30-08 | 25 | 21 | 0,6 | 0,8 | 1,0 |
| P 30-23 | 39 | 30 | 0,6 | 0,8 | 1,0 |
| Type OKASOLAR | Tv % | g-value % | Ug value [W/(m²K)] Ug [Btu/(hfr ft² °F)] Cavity 24 mm | ||
|---|---|---|---|---|---|
3-pane-build-up with low-e coating | Krypton | Argon | Air | ||
| P 30-0 | 1 | 6 | 0,6 | 0,8 | 1,0 |
| P 30-08 | 22 | 18 | 0,6 | 0,8 | 1,0 |
| P 30-23 | 34 | 21 | 0,6 | 0,8 | 1,0 |
